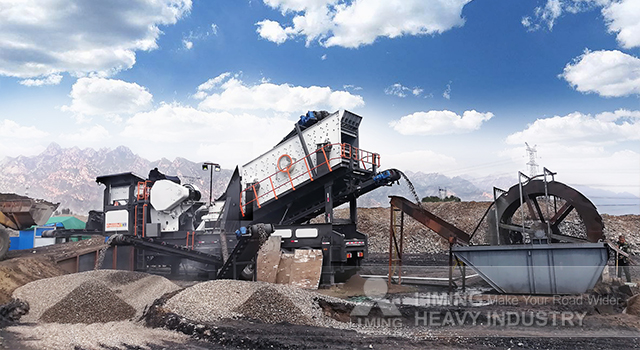

Amplitude for Vibrating Screens: An Overview

Amplitude is a fundamental operational parameter for vibrating screens, directly influencing their screening efficiency, capacity, and material behavior. It refers to the maximum displacement of the screen deck from its rest position during vibration, typically measured in millimeters (mm) or inches. This article details the role of amplitude in screening processes, compares its effects under different conditions, and provides practical insights for optimization.

The primary function of amplitude is to provide the necessary energy to stratify the material bed and convey particles along the screen deck. A higher amplitude imparts greater kinetic energy to the particles, promoting stratification (where finer particles settle to the bottom near the screen media) and preventing blinding or plugging of screen apertures. However, excessive amplitude can lead to premature wear of components, structural stress, and particle degradation. Conversely, insufficient amplitude results in poor stratification, reduced throughput, and material carryover (where fines are not effectively separated). The optimal amplitude is determined by factors such as material characteristics (size, density, moisture), feed rate, screen deck angle, and the specific screening duty (e.g., scalping, sizing, dewatering).

Amplitude Selection: Key Considerations and Contrasts

The following table contrasts the effects and typical applications of low versus high amplitude settings.

Parameter	Low Amplitude	High Amplitude
Particle Kinetics	Gentle motion; suitable for fragile materials.	Aggressive throw; can cause particle breakage.
Stratification	Less effective; risk of poor separation.	Promotes rapid and effective stratification.
Conveyance Speed	Slower material travel; longer retention time.	Faster travel; higher throughput potential.
Blinding Risk	Higher risk for damp or sticky materials.	Lower risk due to more vigorous agitation.
Equipment Stress	Lower mechanical stress on bearings & structure.	Increased stress & wear; higher maintenance cost.
Typical Application	Fine sizing (< 10mm), finishing screens, delicate aggregates.	Scalping (> 50mm), heavy-duty mining ores, sticky/ damp materials handling

Adjusting amplitude is often achieved by changing the eccentric weight configuration on the screen's vibrator shaft(s). Increasing the eccentric mass or its throw radius increases amplitude.

Real-World Application Case: Iron Ore Processing Plant

A large iron ore processing facility in Western Australia was experiencing consistent bottlenecks at its primary screening stage. The vibrating screens tasked with scalping run-of-mine ore (ROM) were frequently blinding due to high clay content during the wet season. The nominal amplitude was set at 6mm.

• Problem: Persistent blinding reduced effective screening area, causing oversize material to report to the crusher circuit alongside fines—reducing crusher efficiency and increasing wear.
• Solution & Analysis: After reviewing operational data and manufacturer guidelines for heavy-duty scalping duty with sticky feed conditions (as per established industry practices documented in mining handbooks), engineers decided to incrementally increase the screen's amplitude.
• Implementation: The eccentric weights on all four vibrator shafts were adjusted in a controlled manner to increase the operating amplitude from 6mm to 8mm.
• Result: The increased kinetic energy successfully disrupted the clay-bound agglomerates without causing excessive structural vibration (stayed within design limits). Blinding incidents dropped by over 70%, crusher throughput increased by approximately 15%, and overall plant capacity saw a measurable improvement. This case underscores that adjusting a key parameter like amplitude within safe design limits can resolve specific process issues without major capital expenditure.

---

Frequently Asked Questions (FAQ)

1. How is amplitude measured on an operating vibrating screen?
Amplitude is most accurately measured using a device like a vibration analyzer or a simple peak-to-peak measurement tool placed on the screen side plate at steady-state operation under full load conditions (as per ISO standards for vibration measurement). It is read as double the single-amplitude value from center point to peak.

2. Can increasing amplitude compensate for an overloaded screen?
While it may temporarily improve conveyance speed slightly, it is not a recommended solution for chronic overloading. Overloading fundamentally overwhelms screen capacity; increasing amplitude often just shifts stress points and accelerates wear without solving root cause issues like improper feed distribution or undersized equipment.

3.What are signs that my screen's amplitude may be incorrect?
Signs of insufficient amplitude include poor stratification (visible fines on top of bed), frequent blinding/screen packing near feed end,and low throughput.Signs of excessiveamplitude include excessive noise/vibration transmittedto structurepremature failureof springsor bearingsexcessive particle degradationand accelerated fatigue crackson side platesor decksupport beams

4.Does desired product size influence optimalamplitude selection?
Yes.Generally,finer separationsrequire loweramplitudesto prevent fine particlesfrom being ejected too violentlyand lostto oversize.Coarse scalpingtypically requireshigher amplitudeto handle large lumpsand promoteaggressivematerial movement.This relationshipis well-documentedin equipment selection guidesfrom major manufacturerslike Metsoand Schenck Process

5.Is therea relationship betweenamplitudeand vibrationspeed(frequency)?
Yes,and they mustbe balanced.Amplitudeprovides"throw"distancewhile frequency(RPM)provides"rate."A commonruleof thumbfor circularor linearvibratingscreensisthatfor agivenmaterial,a higherfrequencyoften usesa loweramplitude,and vice versa.The combinationdeterminesthe "G-force"(acceleration)whichis criticalfor separationefficiency
