Complete Stone Crusher Set: An Overview

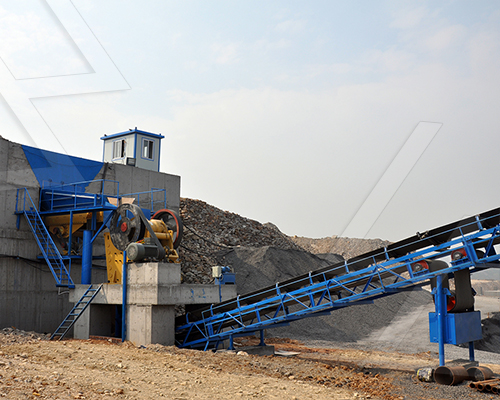

A complete stone crusher set, also known as a crushing plant or production line, is an integrated system designed to process raw rock or river stone into specific sizes of aggregate (sand and gravel) for use in construction, road building, and other industries. It is far more than a single machine; it is a coordinated assembly of various equipment working in sequence to achieve efficient size reduction, screening, and material handling. This article outlines the key components, configurations, considerations for selection, and real-world applications of a complete crushing setup.

Core Components of a Complete Crushing Plant

A standard set comprises several interconnected sections:

1. Feeding System: Typically a vibrating feeder or hopper that regulates the flow of raw material into the primary crusher.
2. Crushing Units: The heart of the plant. Multiple crushers are used in stages:
   • Primary Crusher: (e.g., Jaw Crusher) Handles the largest feed size, performing the initial coarse reduction.
   • Secondary Crusher: (e.g., Cone Crusher or Impact Crusher) Further reduces the material from the primary stage.
   • Tertiary/Quaternary Crushers: (e.g., Cone Crushers, Vertical Shaft Impactors) Used for fine crushing and shaping to produce precisely graded end products.
3. Screening System: Vibrating screens separate crushed material into different size fractions after each crushing stage. Oversized material is sent back for further crushing (closed-circuit operation), while correctly sized material proceeds to the next stage or to stockpiles.
4. Conveying System: A network of belt conveyors transports material between crushers, screens, and stockpiles.
5. Dust Suppression System: Essential for environmental compliance and worker health, using water sprays or mist systems to control dust at transfer points.
6. Power & Control System: Electrical panels and often a central control room or PLC-based system to monitor and operate the entire plant.

Selecting the Right Configuration: Fixed vs. Mobile Plant

The choice between a fixed plant and a mobile/semi-mobile plant depends on project scale, duration, and logistics.

Feature	Fixed Stone Crusher Plant	Mobile/Semi-Mobile Crusher Set
Installation & Foundation	Requires permanent, concrete foundations; time-consuming setup.	Minimal to no foundation; can be set up on level ground quickly.
Mobility & Relocation	Not movable; designed for long-term use at a single site.	Highly mobile (tracked/wheeled); can be relocated between sites relatively easily.
Production Capacity	Generally designed for higher, long-term production volumes.	Capacity varies but is often suitable for medium-scale or contract crushing projects.
Capital Investment	Higher initial investment but potentially lower operating cost per ton over time.	Lower initial investment; ideal for shorter-term projects or multiple sites.
Ideal Use Case	Large quarries supplying aggregate to a wide region over many years.	Road construction projects, demolition recycling sites, mining with multiple pits, or temporary contracts.

Real-World Application Case Study: Granite Aggregate Production in Southeast Asia

A quarry in Vietnam needed to produce high-quality aggregates for local highway construction and commercial concrete.

• Challenge: Process hard granite rock into multiple final products: 0-5mm sand, 5-10mm chips, 10-20mm aggregate.
• Solution (Complete Fixed Plant):
  1. Primary Stage: A robust C125 Jaw Crusher received blasted granite rocks up to 800mm in size.
  2. Secondary & Screening Stage: Crushed output was conveyed to a double-deck screen. Oversize (+31.5mm) was sent to a HP300 Cone Crusher (secondary). Mid-size material (20-31.5mm) was sent directly to stockpile as one product.
  3. Tertiary & Shaping Stage: The screened material from the secondary cone crusher was fed into two CV217 Vertical Shaft Impact (VSI) crushers in a closed circuit with screens to produce well-shaped cubical aggregates and manufactured sand (0-5mm).
• Outcome: The complete plant achieved a production capacity of over 250 tons per hour of precisely graded materials that met national standards for highway construction.

---

Frequently Asked Questions (FAQ)

Q1: What are the main factors determining the cost of a complete stone crusher set?
The cost is influenced by: 1) Production capacity (tons per hour), 2) Hardness and abrasiveness of the raw material (affecting wear part costs), 3) Number of final product grades required (complexity of screening), 4) Mobility needs (fixed vs mobile), and 5) Level of automation and dust control systems.

Q2: How do I choose between an impact crusher and a cone crusher for secondary crushing?
This depends on the desired end product shape and feed material characteristics.

• Use an impact crusher when you need good shape on softer/less abrasive rock like limestone or recycled concrete; it offers better reduction ratios but higher wear costs on abrasive stone.
• Use a cone crusher when processing hard/abrasive materials like granite/basalt; it provides consistent output with lower wear costs but may produce slightly more elongated particles compared to an impactor.

Q3: Is it necessary to have all three stages (primary/secondary/tertiary)?
No—the number of stages depends on your feed size vs desired final product size ratio ("reduction ratio"). A simple setup might only need primary jaw + secondary cone if producing base course only ("run-of-quarry" type). For finer products like sand or multiple specific fractions ("chips"), tertiary stages become essential.

Q4: What are common environmental regulations these plants must comply with?
Key regulations typically focus on dust emissions at transfer points/crushers—requiring suppression systems—and noise levels around site boundaries through sound enclosures/baffles—as well as proper water management if wet suppression is used—to prevent runoff contamination.

---

In conclusion—investing in—a complete stone crusher set requires careful analysis matching equipment configuration against project requirements including material properties—desired products—project duration—and environmental constraints—Properly designed integrated systems maximize efficiency while ensuring reliable production essential supporting infrastructure development globally
