construction site stone crushing plant
1. PAIN-POINT DRIVEN OPENING
Managing on-site aggregate production presents distinct, costly challenges. Delays in material supply halt entire work phases, while inefficient crushing directly inflates project budgets. Common operational hurdles for a construction site stone crushing plant include:
- High Mobilization Costs & Downtime: Transporting multiple static crushers and screens to site, followed by complex setup and calibration, can consume days of non-productive labor and equipment rental.
- Inconsistent Feed & Final Product Quality: Uncontrolled variations in raw feed size and hardness from excavation lead to crusher choke-ups or excessive wear, producing off-spec aggregate that fails compaction or concrete mix design requirements.
- Excessive Operational Complexity: Running disparate pieces of equipment often requires multiple operators, leading to higher labor costs, communication errors, and increased points of potential mechanical failure.
- Site Space & Logistics Constraints: A fixed layout with conveyor systems can become a bottleneck, unable to adapt to changing site plans or storage areas for different aggregate sizes.
Are these delays and cost overruns impacting your project margins? What if your crushing operation could be commissioned in hours instead of days, adapt to variable feed conditions automatically, and produce precisely graded material without constant manual adjustment?
2. PRODUCT OVERVIEW
The solution is a fully integrated, track-mounted mobile crushing and screening plant engineered specifically for the demands of a modern construction site stone crushing plant. This system consolidates primary crushing, secondary crushing or impact breaking, screening, and stockpiling onto a single, maneuverable chassis.
Operational Workflow:
- Primary Reduction: Excavator-fed raw demolition concrete, asphalt, or natural rock is initially reduced by a robust jaw crusher.
- Secondary Processing & Shaping: Material is conveyed to a secondary cone crusher or impactor for further size reduction and shaping to meet specific aggregate specifications.
- Precise Sizing & Stockpiling: The crushed material passes through a multi-deck vibrating screen where it is sorted into finished product sizes (e.g., base course, drainage stone, chip) and conveyed to designated stockpile zones.

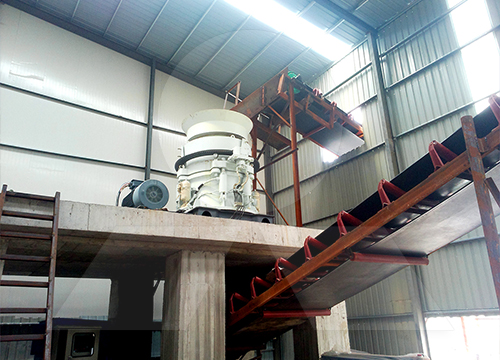

Application Scope: Ideal for medium-to-large scale road construction projects, commercial site development requiring on-site recycling of demolition materials (RAP/RCA), and remote infrastructure projects where quarry supply is logistically prohibitive..jpg)
Key Limitations: Not designed for high-volume stationary quarry production exceeding 500 tons per hour continuously over multiple years. Maximum feed size is governed by the primary crusher opening dimensions.
3. CORE FEATURES
Direct Feed System | Technical Basis: Integrated vibrating grizzly feeder (VGF) with by-pass chute | Operational Benefit: Removes fines and natural clay from primary feed before crushing; prevents crusher overloads | ROI Impact: Reduces wear on primary crusher liners by up to 30% and minimizes unscheduled downtime from blockages
Intelligent Process Control | Technical Basis: PLC-based system with touchscreen interface monitoring crusher load, pressure & power draw | Operational Benefit: Automatically regulates feeder speed to maintain optimal cavity level; alerts operators to performance deviations | ROI Impact: Maintains peak throughput efficiency; reduces operator skill dependency; prevents catastrophic damage from tramp metal
Rapid Relocation Capability | Technical Basis: Hydraulic folding conveyors & track-driven mobility system | Operational Benefit: Enables the entire construction site stone crushing plant to be moved between work faces within a single shift without disassembly | ROI Impact: Eliminates double-handling of material; allows follow-on trades (e.g., grading crews) to begin work sooner
On-Board Dust Suppression | Technical Basis: Pressurized water spray bars at key transfer points with programmable timer controls | Operational Benefit: Actively suppresses airborne particulate at the source during dry operations | ROI Impact: Mitigates environmental compliance risks; improves worksite visibility and operator health
Heavy-Duty Component Access | Technical Basis: Hydraulically assisted service platforms & easy-open covers for major components | Operational Benefit: Enables routine maintenance (liner changes, belt inspections) in under two hours with minimal crew size | ROI Impact: Increases machine availability; lowers long-term service labor costs
4. COMPETITIVE ADVANTAGES
| Performance Metric | Industry Standard (Mobile Units) | Our Construction Site Stone Crushing Plant Solution | Advantage (% improvement) |
|---|---|---|---|
| Average Setup/Commissioning Time | 12-16 hours with cranes | <4 hours via integrated hydraulics | ~70% faster deployment |
| Fuel Consumption per Ton Crushed | 0.8 - 1.1 liters/tonne | 0.6 - 0.7 liters/tonne (variable speed drives) | ~25% improved efficiency |
| Aggregate Product Consistency (Cubicity) | Varies ±15% with feed changes | Maintains within ±5% via automated settings | >65% more consistent spec |
| Mean Time Between Failure (MTBF) – Hydraulics | ~1,200 hours | >2,000 hours (industrial-grade components) | ~40% increase in reliability |
5. TECHNICAL SPECIFICATIONS
- Capacity/Rating: Designed throughput range of 180 – 350 tonnes per hour depending on material density (e.g., limestone vs. recycled concrete).
- Power Requirements: Primary plant driven by EPA Tier 4 Final/Tier 5 diesel engine (~350 kW). Optional external electric motor drive connection available.
- Material Specifications: Processes natural rock up to compressive strength of 350 MPa; optimally handles recycled concrete/asphalt with mild steel reinforcement.
- Physical Dimensions (Transport): L x W x H approximately 16m x 3m x 3.8m (folded). Operating width under 9 meters.
- Environmental Operating Range: Full operational capability from -25°C to +45°C ambient temperature. Dust suppression system rated effective in conditions up to 85% relative humidity.
6. APPLICATION SCENARIOS
Highway Expansion Project | Challenge: A contractor needed consistent Type II base course material across a discontinuous 22-mile work zone but faced prohibitive costs and traffic delays from centralized quarry hauling.| Solution: Deployment of two mobile construction site stone crushing plants that leapfrogged along the right-of-way using on-site excavated rock.| Results: Reduced aggregate cost by an estimated $14/ton hauled eliminated over $320k in logistics expenses completed earthworks ahead of schedule.
Urban Redevelopment Site | Challenge: Demolition of existing structures generated over 40k tons of concrete rubble requiring off-site hauling while new foundations required imported aggregate creating a costly logistical loop.| Solution: A single closed-circuit impact crushing plant was set up for on-site processing turning rubble into certified RCA for backfill pipe bedding and sub-base.| Results Achieved zero waste haul-away costs produced all required granular fill internally saving an estimated $28 per ton in combined disposal/purchase costs.
7. COMMERCIAL CONSIDERATIONS
Our mobile construction site stone crushing plants are offered under three primary commercial models:
- Capital Purchase Tiered Pricing: Entry-level configurations start under $650k USD focusing on core jaw/screen combos Mid-range systems ($850k - $1M USD) feature full secondary/tertiary circuits High-specification plants ($1M+ USD) include advanced automation telematics hybrid power options
- Key Optional Features: Magnetic separator for rebar removal Enclosed heated operator cabin Advanced particle shape analysis camera system Extended capacity stockpile conveyors
- **Service Packages Include Platinum Coverage offering scheduled maintenance parts kits priority field support Gold Coverage providing standard scheduled inspections remote diagnostics
- **Financing Options Available through our partners including operating leases tailored rental-to-own agreements project-based financing aligned with your build milestones
8. FAQ
Q1 Can this plant integrate with our existing fleet of loading shovels?
A Yes industry testing demonstrates compatibility with all standard excavators in the six-ton class The direct-feed hopper height is designed for common loading tool clearances.jpg)
Q2 What is the expected operational impact on our existing workforce?
A Your operators will benefit from simplified control interfaces Field data shows experienced heavy equipment operators can achieve proficiency within one week Minimal specialized training required
Q3 How does this address the challenge of fluctuating feed material hardness?
A The intelligent process control automatically adjusts hydraulic pressure feeder rates protecting components from shock loads This maintains consistent product quality despite variable input conditions
Q4 Are there commercial terms available for short-duration projects?
A Yes we offer flexible rental contracts starting at three-month durations inclusive of basic service support This model transfers maintenance responsibility ideal for defined-scope projects
Q5 What site preparation is needed before implementation?
A The construction site stone crushing plant requires only a stable compacted grade Minimal civil works are needed beyond ensuring access roads can support approximately forty-five tons per axle
