Conveyor Belt Specification: A Comprehensive Guide

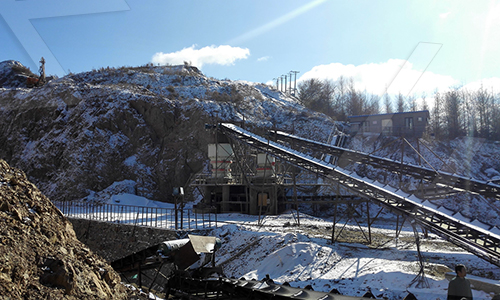

Selecting the correct conveyor belt is a critical engineering decision that directly impacts operational efficiency, safety, and total cost of ownership. Specification goes far beyond mere dimensions; it involves a detailed analysis of the material to be conveyed, the operating environment, and the system's mechanical demands. This guide outlines the key parameters and considerations essential for specifying a conveyor belt that ensures optimal performance and longevity.

Key Specification Parameters

A comprehensive specification sheet must address the following core elements:

1. Belt Construction & Materials:

   • Carcass: The reinforcement layer providing tensile strength. Common types include fabric (polyester-nylon, EP) and steel cord.
   • Covers: The top and bottom rubber or polymer layers protecting the carcass. Specifications include thickness, hardness, and compound type (e.g., abrasion-resistant, heat-resistant, oil-resistant, fire-resistant).
   • Ply Rating & Strength: Expressed as PIW (Pounds per Inch of Width) or N/mm (Newtons per millimetre), indicating the belt's mechanical capacity.

2. Application & Material Characteristics:

   • Material Type: Size, weight, abrasiveness, moisture content, oil presence, and temperature.
   • Load Conditions: Maximum load per unit area, impact forces at loading points.
   • Conveyor Profile: Incline/decline angles, presence of horizontal curves.

3. Environmental & Operational Conditions:

   • Ambient Temperature: Range during operation and storage.
   • Presence of Chemicals/Oils/Moisture.
   • Safety Requirements: Static conductivity (anti-static), fire resistance (e.g., MSHA, DIN 22103), food-grade approvals (FDA/USDA).

Selecting Carcass Type: Fabric vs. Steel Cord

The choice of carcass is fundamental. The table below contrasts the two primary types.

Feature	Fabric (Multi-Ply / Solid Woven)	Steel Cord
Tensile Strength	Low to Medium (up to ~1000 N/mm)	Very High (up to ~8000 N/mm+)
Elongation	Higher (~1-2%)	Very Low (~0.2%)
Pulley Diameter	Requires larger pulleys for flexibility	Can use smaller pulleys
Impact Resistance	Good	Requires protective breaker fabrics
Splice Complexity	Simpler mechanical or vulcanized splice	Complex vulcanized splice requiring specialist skill
Typical Applications	General bulk handling packages parcels light-duty mining food processing food processing food processing food processing food processing food processing food processing food processing food processing food processing food processing food processing heavy-duty long-distance overland high-incline mainline mine haulage

Real-World Case Study: Cement Plant Clinker Handling

A cement plant in Texas experienced excessive downtime due to premature belt failures on its clinker cooler conveyor. The belt was specified with a standard abrasion-resistant cover but failed to account for the combined extreme factors:

• Material: Extremely abrasive hot clinker (up to 120°C / 248°F).
• Impact: Significant impact at the loading chute.
• Environment: High ambient heat and dust.

Solution & Result:
A bespoke specification was developed:

• Carcass: High-tenacity EP fabric with a high weave density for impact resistance.
• Top Cover: SBR-based compound with superior heat resistance up to 150°C and enhanced cut/gouge protection.
• Bottom Cover: A low-friction compound to reduce wear on return idlers.
  The new specification increased belt life from 6 months to over 22 months, drastically reducing replacement costs and unplanned stoppages.

---

Frequently Asked Questions (FAQ)

Q1: What is the single most important factor in specifying a conveyor belt?
There is no single factor; it is always a balance. However, accurately defining the material characteristics (especially abrasiveness, lump size, and temperature) and the maximum loading conditions forms the non-negotiable foundation for all subsequent choices regarding carcass strength and cover compounds.

Q2: How does pulley diameter influence belt specification?
Pulley diameter dictates minimum required belt flexibility. A belt with a thick cover or stiff steel cord carcass requires a larger minimum pulley diameter to avoid excessive bending stress, which can lead to ply separation or premature fatigue failure. Manufacturers provide specific minimum pulley diameters for each belt construction.

Q3: When is a steel cord belt necessary over a fabric belt?
Steel cord belts are specified primarily for very long distances (>1km), very high tensile loads (>1000 N/mm), or where low elongation is critical for synchronous drives. For most in-plant applications with moderate lengths and tensions, modern high-strength fabric belts are sufficient and offer advantages in splice ease and impact resistance.

Q4: Are thicker top covers always better for wear life?
Not necessarily. While a thicker cover offers more wear material, an improperly compounded thick cover can be prone to tearing or gouging. Often, a thinner but optimally formulated compound based on specific wear mechanisms (abrasion vs. cutting) will outperform a thicker generic cover at a lower total cost.

Q5: What standards govern conveyor belt safety specifications?
Key standards vary by region and industry:

• Fire Safety: MSHA (Mining) in the US; DIN 22103/EN ISO 340 in Europe for flame retardancy.
• Electrical Safety: RMA/ANSI IP-20 for static conductivity in US grain handling; ATEX directives for explosive atmospheres in Europe.
• Food Handling: FDA CFR Title 21 or USDA regulations for direct contact applications.
  Compliance with relevant standards is mandatory and must be explicitly stated in the specification.

In conclusion， precise conveyor belt specification is an engineering discipline that demands careful consideration of interdependent variables。 By systematically analyzing application data， material science，and mechanical requirements， specifiers can ensure reliability， safety，and cost-effectiveness throughout the system's lifecycle。
