Dolomite Production, Processing, and Technology: An Overview
Dolomite, a calcium magnesium carbonate mineral (CaMg(CO₃)₂), is a vital industrial raw material with extensive applications in steelmaking, agriculture, glass manufacturing, construction, and environmental remediation. The journey from raw ore to a marketable product involves a series of carefully controlled steps—mining, processing, and sometimes calcination—each leveraging specific technologies to meet stringent industry specifications. This article outlines the core production and processing flows, highlights key technological advancements, and examines real-world applications that define the modern dolomite industry.
1. Mining and Primary Processing.jpg)

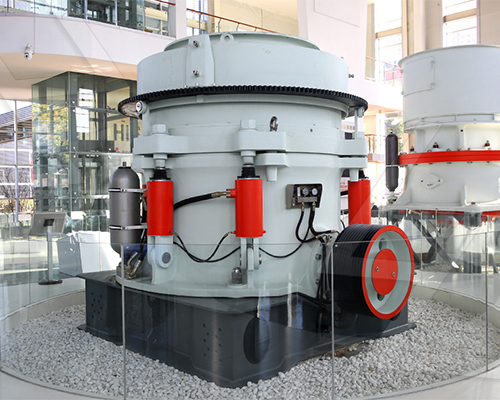

Dolomite is typically extracted from open-pit quarries using conventional drilling and blasting techniques. After extraction, the run-of-mine (ROM) ore undergoes primary crushing, often using jaw or gyratory crushers. The primary goal here is size reduction to a manageable dimension for further processing.
Following crushing, the material is screened to separate it into different size fractions. For construction aggregates (e.g., road base, concrete), the process may stop here after washing to remove fines. For chemical and industrial grades requiring high purity and specific properties, further beneficiation is essential.
2. Beneficiation and Processing Technologies
Beneficiation aims to remove impurities like silica (SiO₂), alumina (Al₂O₃), iron oxides (Fe₂O₃), and phosphorous to enhance the CaO and MgO content. Common methods include:
- Washing and Attrition Scrubbing: Removes clayey materials and surface impurities.
- Gravity Separation: Utilizes jigs or spirals to separate dolomite from heavier or lighter gangue minerals based on specific gravity differences.
- Magnetic Separation: High-intensity magnetic separators (HIMS) are effective in removing iron-bearing impurities.
- Flotation: For ultra-high purity requirements, froth flotation selectively separates dolomite from silicates and other carbonates.
A critical decision in processing is whether to supply raw or calcined dolomite. Calcination involves heating the mineral in a kiln (e.g., rotary or shaft kiln) at temperatures between 900°C-1200°C. This process drives off carbon dioxide (CO₂), resulting in dolime (CaO·MgO), which has significantly different chemical reactivity and physical properties.
The table below contrasts key applications of raw versus calcined dolomite:
| Property/Application | Raw Dolomite | Calcined Dolomite (Dolime) |
|---|---|---|
| Chemical Form | CaMg(CO₃)₂ | CaO·MgO |
| Primary Use in Steel | Sinter plant flux, slag conditioner | Refractory lining material for converters & ladles |
| Primary Use in Agriculture | Soil conditioner to neutralize acidity & add Mg | --- |
| Glass Manufacturing | Source of MgO for stability & workability | --- |
| Environmental Use | --- | Flue gas desulfurization agent |
3. Technological Advancements & Quality Control
Modern production emphasizes energy efficiency and product consistency. Key advancements include:
- Automated Sorting Systems: Optical sorters using X-ray transmission or near-infrared (NIR) sensors can pre-concentrate ore on conveyor belts, improving feed grade to processing plants.
- Advanced Kiln Technology: Modern rotary kilns with heat recuperators significantly reduce fuel consumption during calcination.
- Process Automation: Integrated control systems monitor parameters like particle size distribution (via laser diffraction analyzers) and chemical composition (via online X-ray fluorescence analyzers), allowing real-time adjustments.
Quality control is paramount. Certified laboratories perform XRF for elemental analysis and XRD for mineralogical phase identification to ensure products meet customer specifications for chemistry, grain size distribution, burn loss (LOI), and refractoriness.
4. Real-World Application Case Study: Refractory Dolomite for Steelmaking
A prominent European steel producer faced challenges with lining life in its basic oxygen furnace (BOF). The company sourced high-purity calcined dolomite (dolime) from a supplier utilizing advanced flotation beneficiation and a modern shaft kiln with precise temperature control zones.
The processed dolime had exceptionally low levels of SiO₂ (< 1%) Fe₂O₃ (< 0.5%), high MgO content (> 38%), optimal porosity control through sintering technology which improved thermal shock resistance when used as a refractory brick component.The result was an increase of over 15% in BOF lining campaign life compared to using standard-grade sintered dolomite.This translated directly into reduced downtime for re-lining lower refractory consumption per ton of steel produced,and significant cost savings.This case underscores how targeted processing technology directly impacts performance in critical end-use applications.
FAQ Section
Q1: What is the main difference between limestone and dolomite?
A: Chemically limestone is primarily calcium carbonate (CaCO₃) while dolomite contains both calcium carbonate magnesium carbonate.The key practical difference lies in magnesium content.Dolomites are preferred where MgO is required such as in producing magnesium metal as a source of magnesium oxide for glass or as a refractory material that offers better resistance against basic slags than limestone-derived lime..jpg)
Q2: Why is calcined dolomite used as a refractory lining?
A: When calcined,dolomite transforms into a mixture of calcium oxide(CaO)and magnesium oxide(MgO).Both are highly refractory materials resistant to very high temperatures.MgO particularly imparts excellent resistance against corrosive basic slags prevalent in steelmaking furnaces making it ideal for BOF linings ladle furnaces etc.The product must be "dead-burned" at very high temperatures (>1500°C)to achieve low porosity hydration resistance before use as refractory brick component.
Q3: Can dolomite be used for flue gas desulfurization?
A: Yes but typically only after calcination.Calcined dolime(CaOMgO)is highly reactive slurry used wet flue gas desulfurization(FGD)systems.It reacts with sulfur dioxide(SO₂)gases form solid gypsum(CaSO₄·2H₂O).Its advantage over pure lime(CaO)sometimes cited better handling properties reactivity though choice depends specific plant design economics availability local resources according technical literature USGS EPA reports this application sector significant consumer processed dolime North America Europe Asia regions strict emission standards power plants industrial boilers cement kilns etc..
In conclusion,the production processing technology surrounding dolomit far beyond simple quarrying rock.It sophisticated value chain driven end-user demands requiring precise control over chemistry physical characteristics.From traditional uses construction agriculture transformative role advanced manufacturing environmental protection continuous innovation extraction beneficiation thermal treatment ensures this versatile mineral remains cornerstone modern industry foreseeable future
