Iron Ore Beneficiation Machineries: An Overview

Iron ore beneficiation is a critical process in the mining industry, transforming raw, low-grade iron ore into a concentrated product suitable for efficient steelmaking. This process relies on a suite of specialized machineries designed to separate valuable iron minerals from gangue (waste material) based on differences in physical or chemical properties. The selection and sequence of equipment depend primarily on the ore's characteristics—whether it is hematite or magnetite, and its liberation size. This article outlines the key machineries involved, their applications, and presents real-world operational insights.

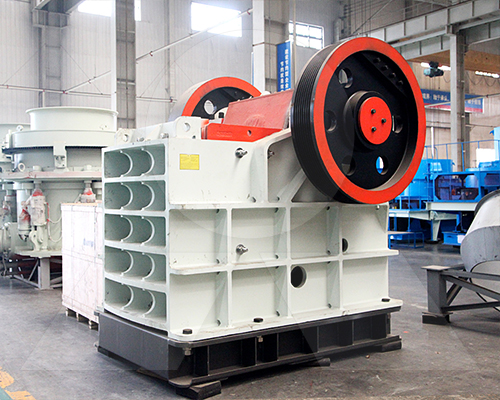

The beneficiation circuit typically begins with crushing and grinding equipment, such as jaw crushers, gyratory crushers, and ball mills, to reduce the ore size and liberate iron minerals from the gangue. Following comminution, the core beneficiation processes take place. For magnetite ores, magnetic separation is dominant, utilizing Low-Intensity Magnetic Separators (LIMS) for recovering magnetite and High-Intensity Magnetic Separators (HIMS) for other ferromagnetic minerals. Hematite ores, being weakly magnetic, often require gravity separation (e.g., spiral concentrators, jigs) or flotation. Dewatering is a final crucial step, achieved through thickeners and filters (disc or drum filters), to produce a transportable concentrate and manage water resources.

A comparison of primary beneficiation methods highlights their distinct applications:

Method	Principle	Key Machinery	Best Suited For
Magnetic Separation	Attracts magnetic particles with a magnetic field.	LIMS Drums, WHIMS (Wet High Intensity Magnetic Separators)	Magnetite ores (Fe₃O₄). The most straightforward method for this mineral.
Gravity Separation	Separates minerals by differences in specific gravity.	Spiral Concentrators, Jigs, Shaking Tables	Coarser-grained hematite ores where there is a clear density difference between iron and gangue.
Flotation	Separates minerals based on surface chemistry properties.	Mechanical/Column Flotation Cells	Fine-grained hematite or ores with complex silicate gangue where physical methods are insufficient.
Scrubbing & Screening	Removes clayey materials and sizes ore.	Log Washers/Scrubbers, Vibrating Screens	Ores with high amounts of sticky clays or soft silica that can be disintegrated physically.

Real-World Case Study: Karara Iron Ore Project, Australia
The Karara mine in Western Australia processes a low-grade magnetite ore. Its beneficiation circuit provides an excellent integrated example of machinery application. After primary crushing, the ore is ground using Autogenous Grinding (AG) mills and ball mills to a fine size for liberation. The ground slurry is then processed through multiple stages of wet low-intensity magnetic separators (WLIMS) to recover the magnetite concentrate. The concentrate is thickened and dewatered using high-rate thickeners followed by large-scale disc filters before being transported as slurry via pipeline for final filtration and pelletizing. This flowsheet demonstrates the industry-standard approach for magnetite beneficiation.

Frequently Asked Questions (FAQs)

1. What is the single most important factor in selecting beneficiation machinery?
The mineralogy of the ore—specifically whether the iron oxide is primarily magnetite or hematite—is the paramount factor. Magnetite circuits are centered on magnetic separators, while hematite circuits are more complex, often requiring gravity or flotation methods.

2. Why is dewatering machinery so important in a beneficiation plant?
Dewatering equipment like thickeners and filters reduces the moisture content of the final concentrate from a slurry to a handleable solid or dense slurry (typically targeting ~8-12% moisture). This drastically reduces transportation costs, prevents freezing during transport in cold climates, and allows for efficient recycling of process water back into the plant.

3 Can flotation be used for magnetite ores?
While magnetic separation is always preferred for magnetite due to its efficiency and lower cost, reverse flotation may be employed as a final cleaning stage on some magnetite concentrates to further reduce silica content by floating away silicate impurities.

4 How has technology improved these machineries in recent years?
Key advancements include larger equipment sizes for economies of scale; more efficient separator designs offering higher recovery; advanced process control systems using real-time sensors; and increased use of wear-resistant materials like ceramics to reduce maintenance downtime.

5 What are common challenges faced by these machines?
Challenges include high wear rates due to abrasive iron ore particles (especially in grinding sections), managing variable feed grades which affects separator performance; achieving consistent moisture targets in dewatering; high energy consumption particularly in grinding; tailings management; ensuring reliable operation under harsh mining conditions
