Iron Ore Crushing & Screening Plant: An Overview

An Iron Ore Crushing and Screening Plant is a critical link in the iron and steel production chain, serving as the primary processing stage where mined iron ore is prepared for subsequent beneficiation or direct shipping. The core objective of this plant is to reduce the size of large, raw ore lumps (often up to 1.5 meters in diameter) into finely graded, consistent particles suitable for efficient transport and further processing. This is achieved through a coordinated sequence of crushing stages (primary, secondary, and sometimes tertiary) and screening operations that separate the material by size. The design and equipment selection for such a plant are paramount, directly impacting throughput, product quality, operational cost, and overall project economics. This article delves into the standard process flow, key equipment considerations with comparative analysis, and presents a real-world application.

Process Flow and Equipment Selection

A typical stationary iron ore crushing and screening circuit follows a logical, multi-stage reduction path.

1. Primary Crushing: This first stage handles the run-of-mine (ROM) ore directly from the mine pit. The primary crusher must be robust enough to accept large feed sizes with high capacity. Gyratory crushers are often preferred for high-tonnage operations due to their ability to handle slabby feeds and provide continuous crushing action.
2. Primary Screening: The output from the primary crusher is sent to a primary screen (typically a heavy-duty vibrating screen). Oversize material is recirculated back to the crusher ("closed circuit"), while the undersize proceeds downstream.
3. Secondary Crushing: The screened material from the primary circuit is further reduced in size by secondary crushers, such as cone crushers. These machines provide better control over product shape and size.
4. Screening & Classification: This is the heart of product sizing. Multiple decks on vibrating screens separate the crushed ore into specific product fractions (e.g., Lump Ore: +6mm to -30mm; Fines: -6mm). Screens are selected based on aperture size, capacity, and material characteristics (moisture, abrasiveness).
5. Tertiary Crushing (if required): For plants requiring very fine crushed products or producing specific blends, a tertiary crushing stage using cone crushers or high-pressure grinding rolls (HPGR) may be incorporated.

The choice between different types of crushers depends on factors like ore hardness (abrasion index), moisture content, required capacity, and product size distribution.

Equipment Type	Typical Application in Iron Ore	Key Advantages	Key Limitations
Gyratory Crusher	Primary Crushing	High capacity; Handles slabby ore well; Lower installed height vs. jaw crusher for same feed size.	High capital cost; Complex maintenance; Not easily relocated.
Jaw Crusher	Primary/Secondary	Simpler design; Lower initial cost; Good for less abrasive ore or modular plants.	Lower capacity than gyratory for same feed opening; Prone to wear with highly abrasive ore; Product shape may be less cubical.

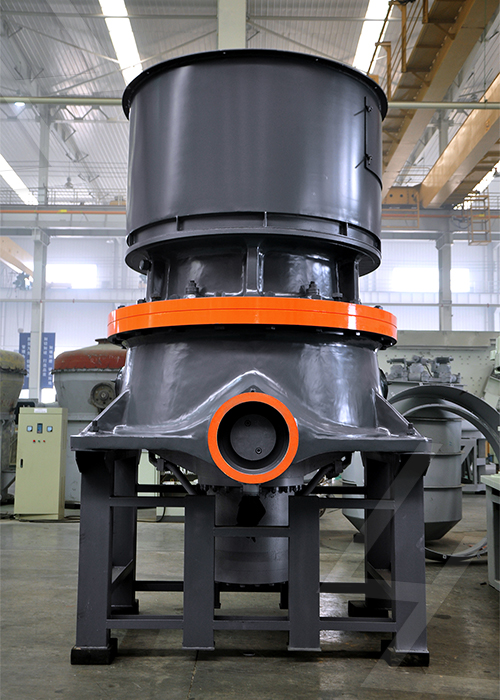

Cone Crusher	Secondary/Tertiary	Excellent particle shape control; Efficient size reduction; Good for medium to hard/abrasive ores.	Sensitive to feed distribution & moisture ("choke feeding" critical); Higher wear part cost than jaw crushers.
High-Pressure Grinding Rolls (HPGR)	Tertiary/Final Crushing	Energy efficient; Generates micro-cracks in particles aiding downstream beneficiation; Produces more fines consistently.	High capital cost; Roll wear surfaces require maintenance/ replacement; Best performance with consistent feed grading.

Real-World Case Study: Karara Iron Ore Project, Western Australia

The Karara Magnetite project provides a pertinent example of an integrated crushing and screening plant within a larger processing context.

• Challenge: Process hard magnetite banded iron formation (BIF) ore to produce a high-grade magnetite concentrate.
• Solution: The primary crushing facility was designed for an annual throughput of approximately 30 million tonnes of ROM ore.
• Crushing Circuit: It features a primary gyratory crusher that reduces ROM ore from up to 1m in size down to about 150mm.
• Screening & Stockpiling: The crushed product is then screened via double-deck banana screens at coarse (~32mm) and fine (~6mm) sizes to create separate stockpiles for lump and fines material before being fed into the downstream grinding and magnetic separation circuit.
• Outcome: This robust front-end crushing and screening plant ensures consistent feed sizing for the highly sensitive grinding mills downstream, which is critical for achieving liberation of magnetite grains and meeting concentrate grade specifications reliably.

FAQ

Q1: Why is screening so important in an iron ore crushing plant?
Screening serves multiple critical functions: it removes fine material early in the process ("scalping") to protect downstream crushers from unnecessary wear; it separates final products into commercial grades like lump and fines which have different market values/blast furnace requirements; it enables closed-circuit crushing where oversize material is recirculated back through a crusher until it passes through the screen apertures—this ensures tight control over final product top-size.

Q2: What are common challenges faced in iron ore crushing circuits?
Key challenges include:

• Abrasiveness: Iron ores are highly abrasive leading to rapid wear on liners/chamber components.
• Moisture & Clay Content ("Sticky Ore"): Wet or clay-rich ores can cause plugging/choking of screens and crushers significantly reducing throughput.
• Variability in Feed Characteristics: Hardness can vary across different mining faces causing fluctuations in power draw/capacity.

Q3: How does one decide between building stationary vs mobile/semi-mobile plants?
This decision hinges on mine plan lifespan/reserves deposit geometry:

• Stationary plants are used for long-life mines (>10-15 years). They offer higher capacities lower operating costs per tonne greater integration with downstream processes but require higher upfront capital investment fixed infrastructure like concrete foundations conveyors etc..

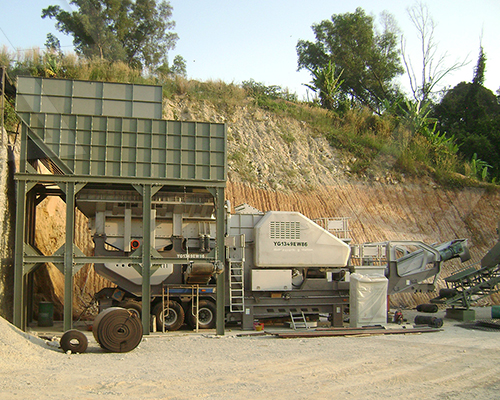

• Mobile/semi-mobile units suit shorter-life mines satellite deposits or mines requiring frequent relocation due advancing pit faces They offer flexibility faster commissioning times lower initial civil works but typically have higher operating costs per tonne due smaller scale limitations on maximum capacity compared stationary counterparts

Q4: What role does automation play in modern plants?
Automation systems monitor parameters like power draw chamber pressure feed rates etc., optimizing performance preventing overload situations ensuring safety They also facilitate predictive maintenance scheduling based actual operating data rather fixed time intervals thereby reducing unplanned downtime extending equipment life

---

References/Industry Basis
The technical descriptions align with standard mineral processing engineering principles as outlined in foundational texts such as Mineral Processing Technology by B.A Wills et al., SME’s Mineral Processing Plant Design Practice Control Proceedings, plus publicly available technical descriptions of major mining projects like Karara Iron Ore Project published by Gindalbie Metals Ltd./Ansteel Group
