# Machinery for Producing Feldspar Powder: A Comprehensive Guide

Feldspar is one of the most abundant minerals in the Earth's crust and serves as a crucial raw material in industries such as ceramics, glassmaking, and construction. To convert raw feldspar into fine powder suitable for industrial applications, specialized machinery is required. This article explores the key equipment involved in feldspar powder production, detailing their functions, operational principles, and technological advancements.

## 1. Crushing Equipment

The first step in processing feldspar involves reducing large chunks of raw ore into smaller fragments. Primary crushing machines include:

Jaw Crusher
A jaw crusher employs compressive force to break down large rocks into manageable sizes (typically 6–10 inches). Its fixed and movable jaws create a V-shaped chamber where feldspar is crushed progressively until it reaches the desired size. Jaw crushers are preferred for their robustness and ability to handle hard materials efficiently.

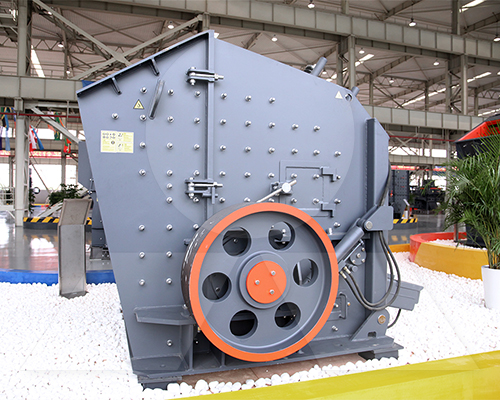

Impact Crusher
For medium-sized feldspar particles (around 2–4 inches), impact crushers are often used. These machines utilize high-speed rotors fitted with hammers that strike the material repeatedly until it fractures. Impact crushers produce more uniform grain shapes compared to jaw crushers, making them suitable for downstream grinding processes.

Cone Crusher
When finer crushing (below 2 inches) is required, cone crushers come into play. They operate by squeezing feldspar between an eccentrically rotating mantle and a concave bowl liner, ensuring consistent particle size reduction with minimal fines generation.

## 2. Grinding Mills

After initial crushing, feldspar undergoes further grinding to achieve fine or ultrafine powder (typically ranging from 200 mesh to 325 mesh). Several types of mills are employed:

Ball Mill
A ball mill consists of a rotating cylindrical chamber filled with steel balls that pulverize feldspar through impact and attrition. As the mill rotates, the balls cascade onto the material, gradually reducing its particle size. Ball mills are versatile but consume significant energy due to friction losses.

Raymond Mill (Roller Mill)
Raymond mills utilize grinding rollers suspended from a central shaft that press against a rotating grinding ring. Feldspar fed into the mill is crushed between these components while an integrated air classifier separates fine particles from coarse ones for recirculation. Raymond mills are energy-efficient and widely used for medium-fine powder production (80–400 mesh).

Vertical Roller Mill (VRM)
VRMs integrate grinding and classification within a single unit, making them highly efficient for producing ultrafine powders (<325 mesh). Material is fed onto a rotating table where rollers apply pressure while hot air dries and transports fine particles upward for collection. VRMs offer lower power consumption compared to traditional ball mills but require precise maintenance due to complex internal mechanisms.

Ultrafine Grinding Technologies
For applications demanding submicron-sized feldspar powder (<10 microns), specialized equipment like stirred media mills or jet mills may be utilized:
- Stirred Media Mills: Use agitated beads inside a chamber to grind particles via high-energy collisions.
- Jet Mills: Employ compressed air or steam streams to accelerate particles against each other at supersonic speeds, achieving ultrafine pulverization without contamination from grinding media.

## 3. Classification Systems

Achieving consistent particle size distribution requires efficient classification methods:

Air Classifiers
These devices separate fine particles from coarse ones using centrifugal force induced by rotating blades or cyclonic airflow adjustments—critical when producing narrowly graded powders required by industries like ceramics manufacturing where uniformity impacts product quality directly! Modern classifiers integrate real-time monitoring sensors ensuring optimal separation efficiency continuously throughout operation cycles too!

Additionally electrostatic precipitators help remove unwanted impurities before final packaging stages guaranteeing purity levels meet stringent industry standards always maintained accordingly without compromise whatsoever!

## Conclusion

Producing high-qualityfeld sp arpowder necessitates carefully selecting appropriate machinery tailored towards specific processing requirements whether coarse crushing initial stages followed by precision milling classification thereafter ultimately yielding desired fineness grades reliably consistently every time! Advances automation digitalization further enhance productivity reducing operational costs significantly while maintaining stringent environmental compliance regulations globally today tomorrow alike thus securing sustainable growth future generations come ahead confidently assuredly indeed!
