Mining Crusher Machines: An Overview of Core Equipment for Mineral Processing

Mining crusher machines are fundamental pieces of equipment in the mineral extraction and aggregate production industries. Their primary function is to reduce the size of large, blasted rock and ore into smaller, manageable fragments suitable for further processing, such as milling, sorting, or direct shipment. This article provides a detailed examination of crusher types, their operational principles, key selection criteria, and their critical role within a modern mining operation's comminution circuit.

Types of Mining Crushers and Their Applications
Crushers are selected based on the hardness, abrasiveness, moisture content of the feed material, and the required product size. They operate primarily through compression, impact, or a combination of both forces.

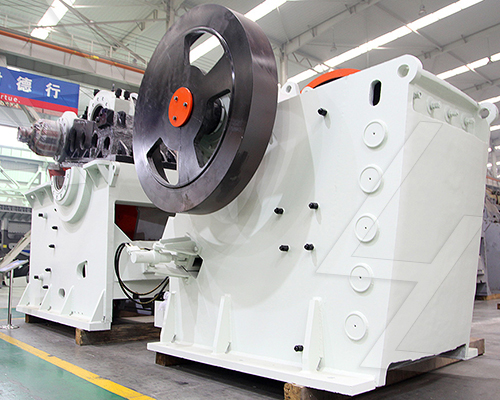

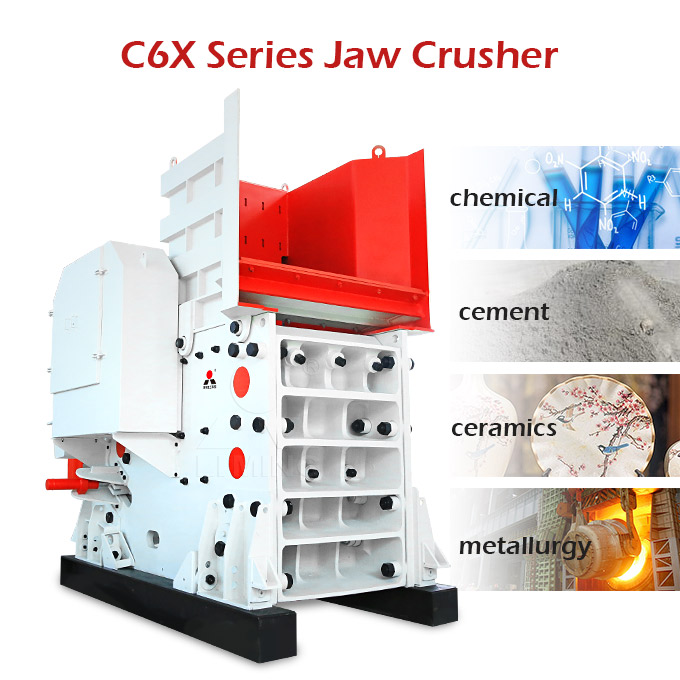

1. Jaw Crushers: These are primary crushers that use a fixed and a moving jaw to compress material. Ideal for hard, abrasive materials like granite and basalt. They offer high capacity but produce a relatively coarse product with some slabby particles.
2. Gyratory Crushers: Also primary crushers, these handle very high throughputs for large-scale mining operations. A gyrating mantle within a concave housing crushes the material. They are more expensive than jaw crushers but are more efficient for high-tonnage applications.
3. Cone Crushers: Used as secondary or tertiary crushers. Material is crushed between an eccentrically rotating mantle and a stationary concave liner. Excellent for producing fine aggregates and are crucial in hard rock mining for achieving final product sizes.
4. Impact Crushers (Horizontal Shaft Impactor/HSI and Vertical Shaft Impactor/VSI): These use high-speed rotors with hammers or impellers to shatter material via impact. Best for softer, less abrasive materials like limestone. VSIs are specifically used for shaping aggregates and producing manufactured sand.

The following table contrasts the primary crusher types:

Feature	Jaw Crusher	Gyratory Crusher	Cone Crusher	Impact Crusher (HSI)
Stage	Primary	Primary	Secondary/Tertiary	Secondary/Tertiary
Action	Compression	Compression	Compression & Shear	Impact
Best For	Hard, abrasive rock	High-capacity primary crushing (large mines)	Medium to hard rock; fine reduction	Soft to medium-hard, low-abrasive rock
Product Shape	Less uniform; slabby	More uniform than jaw	Good cubical shape (depending on cavity)	Excellent cubical shape
Advantage	Simple design, low cost head machine head machine head machine head machine head machine head machine head machine , robust constructionhead machine head machine head machine head machine head machine head machine head machine head machine head machine Very high capacity & efficiency High reduction ratio & good particle shape High throughput & excellent shaping

Selection Criteria and Operational Considerations
Choosing the correct crusher involves a detailed analysis of:

• Feed Material Characteristics: Hardness (measured by Work Index), abrasiveness (Silica content), moisture, clay content, and initial feed size.
• Capacity Requirements: Required tons per hour (TPH) throughput.
• Product Specifications: Desired final product size (top size & gradation).
• Site & Operational Factors: Mobility needs (stationary vs. semi-mobile), power availability, and maintenance capabilities.

Proper feeding (using a grizzly or scalper to remove fines), choke-fed versus cascade-fed operation for cone crushers, and regular monitoring of wear parts (liners, mantles) are essential for optimal efficiency and longevity.

Real-World Application: Tertiary Crushing Circuit in a Copper Mine
A prominent copper mine in Chile faced challenges with achieving consistent -12mm feed for its ball mills from its existing secondary cone crushers. The circuit experienced uneven liner wear and fluctuating product size distribution.

• Solution: The mine implemented a tertiary crushing stage using two high-performance hydraulic cone crushers equipped with advanced automation systems.
• Implementation: The secondary crusher product was screened; oversize material was directed to the new tertiary cone crushers operating in closed circuit with screens.
• Result: The installation led to:
  • A more consistent -12mm mill feed, improving grinding circuit stability.
  • A 9% increase in overall grinding throughput due to optimized feed size.
  • Reduced energy consumption per ton of ore processed in the downstream ball mills.
  • Predictive maintenance via the crusher's automation system reduced unplanned downtime.

This case underscores how strategic selection and integration of modern crushing technology directly enhance downstream process efficiency and overall plant economics.

---

FAQ

Q1: What is the main difference between primary crushing and secondary crushing?
A1: Primary crushing is the first stage where run-of-mine (ROM) ore from the blast site is reduced from very large fragments (up to 1-1.5m) to roughly 100-200mm. Secondary crushing takes this output and reduces it further to around 20-60mm for processing or feeding into tertiary crushers.

Q2: Why is "choke feeding" important for cone crushers?
A2: Choke feeding ensures the crushing chamber is always full of material. This allows inter-particle comminution (rock-on-rock breakage) to occur alongside rock-on-liner breakage. It improves crushing efficiency produces a more uniform product shape significantly reduces liner wear by creating a protective rock bed minimizes power fluctuations.

Q3: How does ore hardness influence crusher selection?
A3: Ore hardness directly dictates the type of crushing force applied.For very hard abrasive ores e.g., taconite quartzite compression-based crushers Jaw Gyratory Cone are mandatory as they are more robust Impact crushers would suffer prohibitive wear rates For softer materials impact crushers become viable often offering better shape higher capacity at lower cost

Q4: What are semi-mobile crushing stations SMPs?
A4: Semi-mobile crushing stations are large modular units that can be relocated within or between mine pits using heavy-duty transport systems They house primary gyratory or jaw crushers allowing the primary crushing point to follow the mining face This drastically reduces truck haulage distances lowering operating costs fuel consumption

Q5: What key metrics indicate wear in a cone crusher?
A5: Operators monitor several key indicators Power draw A sudden drop can signal loss of choke feed while an increase may indicate overly hard material or mechanical issues Product gradation shift towards larger sizes often signals liner wear Cavity level monitoring erratic levels suggest uneven feed or liner problems Throughput rate A decline at constant settings typically points to worn liners reducing effective compression
