Processing Machines for Solid Minerals: An Overview

The extraction of valuable components from solid minerals is a cornerstone of modern industry, supplying essential materials for construction, technology, energy, and manufacturing. The efficiency and success of this extraction are fundamentally dependent on the machinery used in the processing circuit. This article provides an overview of key machines employed in solid mineral processing, from primary crushing to final concentration, highlighting their functions and technological advancements. The discussion will include comparative analyses, real-world applications, and answers to common technical questions.

The processing flow is sequential and typically follows the stages of comminution (size reduction), classification, separation (concentration), and dewatering. Each stage utilizes specialized machinery designed for specific physical and chemical properties of the ore.

1. Comminution: Crushing and Grinding
This is the first and often most energy-intensive stage.

• Primary Crushers (Jaw & Gyratory): Handle large run-of-mine ore, reducing it to a manageable size (typically >100 mm). Jaw crushers are favored for smaller operations or harder, abrasive ores, while gyratory crushers are high-capacity machines for large-scale mining.

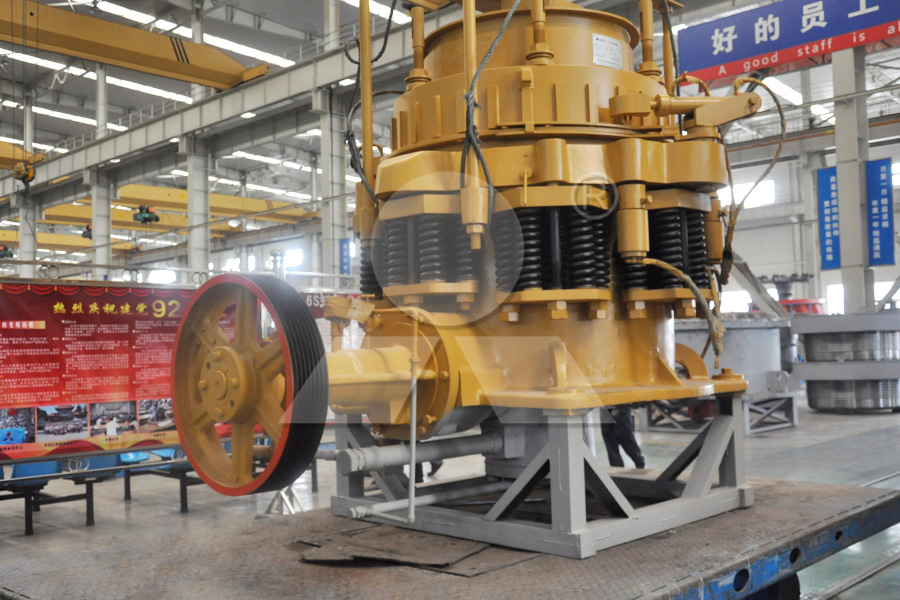

• Secondary/Tertiary Crushers (Cone & Impact): Further reduce ore size to feed grinding mills. Cone crushers are standard for hard ores; impact crushers are suitable for softer, less abrasive materials.
• Grinding Mills (Ball, SAG, Rod): Achieve fine or ultra-fine liberation of mineral grains. Selection depends on ore characteristics. Semi-Autogenous Grinding (SAG) mills use large ore pieces as grinding media alongside steel balls and are common in large gold and copper operations.

2. Classification: Sizing Separation
Machines here separate particles based on size or settling rate to ensure optimal feed for downstream processes.

• Screens (Vibrating, Trommel): Physically separate particles using meshes or apertures.
• Hydrocyclones: Use centrifugal force in a slurry to separate fine from coarse particles; they are ubiquitous in closed-circuit grinding operations.

3. Separation/Concentration: Value Recovery
This is the core stage where valuable minerals are separated from gangue (waste). The choice of technology is dictated by mineral properties.

Separation Principle	Machine Examples	Target Minerals / Application
Gravity Separation	Jigs, Shaking Tables, Spirals	High-density minerals (Gold, Tin [Cassiterite], Iron Ore, Heavy Mineral Sands). Effective where there is a significant specific gravity difference.
Magnetic Separation	Low/High-Intensity Magnetic Separators (LIMS/HIMS)	Ferromagnetic (magnetite) and paramagnetic minerals (ilmenite, hematite).
Electrostatic Separation	Plate & Screen Separators	Conductors vs. non-conductors (e.g., separating rutile from zircon).
Flotation	Mechanical & Column Flotation Cells	Sulfide ores (Copper, Lead-Zinc), Potash, Fine coal. Relies on surface chemistry differences.

4. Dewatering: Solid-Liquid Separation
Final concentrates and tailings must be dewatered for transport and disposal.

• Thickeners/Clarifiers: Use gravity settling to produce a dense underflow slurry and clear overflow water.
• Filters (Vacuum Drum/Disc Filter, Filter Press): Produce a damp filter cake with low moisture content. Filter presses are critical for producing dry stack tailings.
• Dryers (Rotary): Used when extremely low moisture is required.

Real-World Application Case Study: Carrapateena Copper-Gold Mine

The Carrapateena mine in South Australia provides a clear example of an integrated processing flowsheet using advanced machinery.

1. Comminution: It employs a primary gyratory crusher underground. The crushed ore is then hoisted to the surface and fed into a SAG mill followed by a ball mill for fine grinding.
2. Separation: The finely ground slurry undergoes flotation. Here, specifically designed flotation cells selectively recover copper and gold-bearing sulfide minerals into a froth concentrate.
3. Dewatering: The concentrate is thickened and then dewatered using high-pressure filter presses to create a dry-enough filter cake suitable for transport to smelters.
4. Tailings Management: Tailings from flotation are thickened significantly using high-rate thickeners before being pumped back underground as paste fill—a sophisticated solution combining processing with environmental management.

Frequently Asked Questions (FAQs)

1. What is the single most important factor in selecting a mineral processing machine?
   The number one factor is the liberation size of the target mineral—the particle size at which it is physically freed from the gangue rock. This determines the required fineness of grinding which dictates mill selection and influences all downstream separation equipment choices.

2. Why has High-Pressure Grinding Rolls (HPGR) technology become more prevalent?
   HPGRs offer significant energy efficiency advantages over traditional crushers and SAG mills for certain hard ores like iron ore or diamonds.They operate on an inter-particle compression principle which creates micro-cracks within particles leading to more efficient downstream grinding.This results in up to 20-30% lower specific energy consumption according to multiple industry studies published by bodies like SAG Conference proceedings.

3.Flotation dominates metal sulfide processing; what determines reagent choice?
Reagent selection—collectors,frothers,and modifiers—is based on rigorous metallurgical test work.It depends on the specific sulfide minerals present(e.g.,chalcopyrite vs.galena),their surface chemistry,and the presence of interfering ions.The goal is to maximize selectivity;for instance,a collector like potassium amyl xanthate(PAX)is commonly used for copper sulfides but would not be effective alone for oxide copper minerals.

4.How do modern sensor-based sorting machines impact pre-concentration?
Sensor-based sorters(e.g.,using X-ray transmission,laser,near-infrared)can reject waste rock early in the process by scanning individual rocks on a conveyor belt.This reduces energy consumption by diverting barren material before it enters expensive fine grinding circuits.A documented case at Boliden's Garpenberg zinc-lead mine showed sensor sorting increased head grade by over 20%to the mill,thereby directly boosting plant capacity without expanding grinding circuits.

5.What are key considerations when choosing between thickeners versus filter presses?
It's often about final moisture content versus capital/operating cost.Thickeners(lower CapEx & OpEx)produce pumpable slurries(50-70% solids).They're used ahead of filters or for tailings disposal.Filter Presses(higher CapEx,variable OpEx)produce stable,cake-like material(75-85% solids)suitable for dry stacking or transport.The decision hinges on water recovery needs,tailings storage facility design,and transportation logistics as seen in modern mines moving towards filtered tailings systems
