Engineering Resilience and Profitability in Demanding Applications: A Practical Analysis of the Modern Portable Jaw Crusher Plant

1. The Operational Bottleneck: Inefficiency at the Primary Face

As senior operational leaders, we understand that the primary crushing stage is the foundation upon which plant efficiency is built—or compromised. The traditional stationary primary plant, while robust, often represents a significant and inflexible capital expenditure. More critically, it can become a severe operational bottleneck.

Consider a typical challenge: a multi-pit quarry or a mining operation with satellite deposits. Here, the single, fixed primary crusher forces a reliance on costly and inefficient long-haul truck cycles from the face to the plant. This not only escalates fuel and tire costs but also introduces variability in feed rates, leading to choke-feeding or starved crusher conditions that degrade liner life and product consistency.

The problem is quantified by industry data. A study by the Coalition for Eco-Efficient Comminution (CEEC) highlights that grinding can account for over 50% of a mine's total energy consumption, underscoring the need for precisely crushed feed material. Inconsistent feed size from an overworked or poorly located primary crusher directly increases the specific energy consumption of downstream processes. Furthermore, in highly abrasive environments like taconite or quartz-rich granite, premature wear part failure in an ill-suited crusher can shutdown production for days, with liner changes costing hundreds of thousands in both parts and lost throughput.

2. The Engineering Solution: Design Philosophy of the Mobile Primary Station

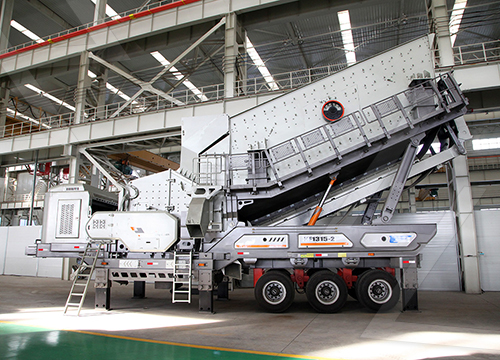

The modern portable jaw crusher plant is not merely a mobile version of its stationary counterpart; it is a re-engineering of the primary crushing concept around flexibility and efficiency. The core solution lies in integrating a high-performance jaw crusher with a self-contained material handling system on a single chassis.

The engineering principles are critical:

• Crushing Chamber Geometry: Advanced kinematic designs, such as an aggressive nip angle and a deep symmetrical crushing chamber, ensure continuous rock-on-rock compression throughout the entire cycle. This maximizes reduction ratio in a single pass and promotes a more cubical product while minimizing slabby output and reducing plugging potential.
• Hydraulic Control Systems: Integrated hydraulic systems for setting adjustment (CSS) and tramp iron release are no longer luxuries but necessities. The ability to adjust CSS under load via a touchscreen allows operators to dial in product gradation in real-time to match downstream mill or screen requirements. Automatic tramp release protects the crusher from uncrushables without stalling the entire system.
• Structural Integrity: The entire unit is built on a heavy-duty chassis designed to absorb both static loads and dynamic crushing forces, ensuring alignment is maintained for optimal bearing life and consistent particle size distribution.

Table: Performance Comparison - Traditional Stationary vs. Modern Portable Jaw Plant
| Key Performance Indicator | Traditional Stationary Plant | Modern Portable Jaw Plant |
| :--- | :--- | :--- |
| Relative Setup Time | Weeks to Months | Hours to Days |
| Operational Flexibility | Fixed; tied to one feed source | High; can be relocated between pits or sites |
| Throughput (Tons/Hr) | High (at design location) | Consistently High (moved to the material) |
| End-Product Shape | Varies with liner wear | Consistently cubical due to optimized chamber design |
| Wear Part Consumption Rate | Standard | Often lower due to optimized kinematics & materials |
| Specific Energy Consumption | Lower at crusher, but higher system-wide due to haulage | Optimized system-wide by eliminating long haul cycles |

3. Proven Applications & Economic Impact: Maximizing Yield Across Sectors

The versatility of these plants is proven across diverse material contexts:

• Copper Ore for Optimal Leach Recovery: In a porphyry copper operation, consistent -6" feed to the SAG mill is paramount.

  • Before: A stationary gyratory 1.5km from the pit face required 12 x 40-ton trucks cycling continuously.
  • After: A portable jaw plant positioned at the pit rim.
  • Economic Impact: Achieved a 20% increase in effective tons per hour by eliminating trucking bottlenecks. Produced over 85% cubical product, enhancing downstream grinding efficiency and improving leach pad permeability.

• Granite for Railway Ballast Specification: Producing high-integrity, sharp-edged ballast requires precise control.

  • Before: A older jaw plant produced excessive fines and elongated particles, failing spec consistently.
  • After: A modern portable plant with hydraulic CSS adjustment and an optimized chamber profile.
  • Economic Impact: Reduced cost per ton by 15% through longer wear part intervals (increased from 450k tons to 600k tons per set) and near-elimination of off-spec product.

4. The Strategic Roadmap: Digitalization and Autonomous Operation

The next evolution is already underway, transforming these units from mechanical workhorses into intelligent nodes within an optimized circuit. Future developments focus on:

• Integration with Plant Process Optimization Systems: Real-time data on power draw, CSS, and feed rate can be fed into a central system that automatically adjusts settings for maximum throughput or optimal product shape.
• Predictive Maintenance: Vibration sensors and temperature monitors on bearings and drives can forecast failures weeks in advance, allowing for planned maintenance during shifts rather than catastrophic downtime.
• Sustainability through Design: Designs now facilitate easier replacement with liners made from recycled alloys, while direct electric drive systems eliminate diesel particulate emissions when grid power is available.

5. Addressing Critical Operational Concerns (FAQ)

• Q: What is the expected liner life in hours when processing highly abrasive iron ore?

  • A: In magnetite/taconite applications, expect 1,200 to 1,800 motor hours per set of manganese jaws. Key influencing factors are feed size (scalping is critical), % silica content, and closed-side setting. We recommend onsite wear rate profiling during commissioning.

• Q: How does your mobile rock crusher setup time compare to a traditional stationary plant?

  • A: A self-propelled portable plant can be moved, leveled, and begin crushing in under 4 hours with a standard crew of 2-3 personnel—a fraction of the weeks required for civil works associated with stationary foundations.

• Q: Can your system handle variations in feed moisture without compromising output?

  • A: While jaw crushers are less susceptible to clay-binding than cones, effective pre-screening remains essential. Our solutions integrate heavy-duty vibrating grizzly feeders with high-G-force actuation to handle sticky material and prevent surging into the crushing chamber.

6. Case in Point: Southeast Asia Barite Processing Co.

• Challenge: Upgrading their circuit to consistently produce 325-mesh barite for the oilfield drilling market required a reliable -4" feed to their new vertical shaft impact crusher and grinding mill. Their existing setup used rented excavators and dump trucks to feed a distant stationary crusher, causing inconsistent feed rates and frequent blockages.
• Solution: Deployment of one self-propelled portable jaw crushing plant equipped with an integrated pre-screener positioned directly at the loading zone.
• Measurable Outcomes:
  • Throughput increased by 30%, stabilizing mill feed.
  • System Availability remained above 94%, compared to ~80% previously due to haulage delays.
  • Energy Consumption per Ton processed decreased by 18%, attributed largely to eliminating diesel haul trucks.
  • Product Fineness Achieved was consistently within spec due to stable VSI feed gradation.
  • Return on Investment (ROI) Timeline was calculated at just under 14 months based on increased production volume and reduced operating costs.

For engineers focused on bottom-line results—throughput per dollar, availability percentage, cost per ton—the modern portable jaw plant has evolved from a niche tool into a strategic asset capable of de-risking projects and delivering tangible engineering resilience where it matters most: at the primary face
