Raw Meal Production Process: An Overview

The raw meal production process is a critical preparatory stage in the manufacture of Portland cement, where precisely proportioned raw materials are ground, homogenized, and prepared for the subsequent pyro-processing stage in the kiln. The primary objective is to produce a consistent, finely ground powder—known as raw meal or kiln feed—with a tightly controlled chemical composition. This uniformity is essential for ensuring stable kiln operation, optimal clinker quality, and energy efficiency. The core stages involve quarrying and crushing of raw materials (primarily limestone, clay/shale, and corrective components like iron ore or sand), their proportional dosing via sophisticated raw mix design, grinding (typically in vertical roller mills or ball mills), and homogenization in large blending silos. This article details this fundamental process, supported by comparative analysis and real-world application.

Key Stages of Raw Meal Production

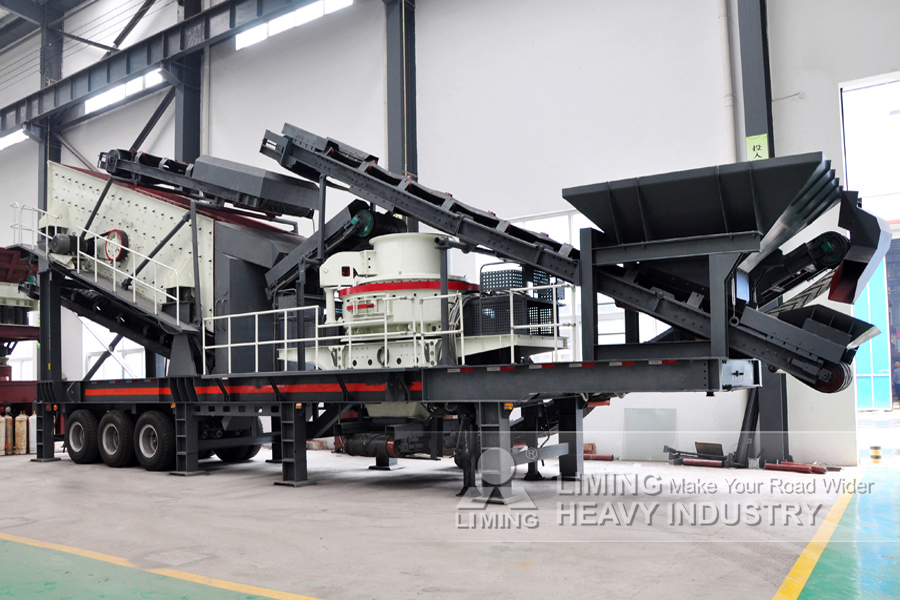

1. Raw Material Quarrying & Crushing: Limestone (the primary source of calcium oxide) is extracted from quarries, often alongside secondary materials like marl or clay. These materials are crushed to a top size typically below 25-50 mm to facilitate handling and grinding.

2. Raw Mix Design & Proportioning: The chemical composition target is defined by key parameters: Lime Saturation Factor (LSF), Silica Ratio (SR), and Alumina Ratio (AR). Based on chemical analysis of individual material stockpiles, precise proportions are calculated using software tools to achieve the target raw meal chemistry. Materials are then accurately fed onto the raw mill feed belt via weigh feeders or belt scales.

3. Grinding & Drying: The proportioned raw mix is fed into a grinding mill. Modern plants predominantly use Vertical Roller Mills (VRM) due to their superior energy efficiency. Hot gases from the kiln preheater exhaust are introduced to dry the moisture from the materials during grinding.
   Comparison of Common Grinding Systems:
   | Feature | Vertical Roller Mill (VRM) | Ball Mill |
   | :--- | :--- | :--- |
   | Energy Consumption | Lower (by 15-30%) for grinding and drying | Higher |
   | Drying Capacity | Excellent, can handle high-moisture feed | Limited without auxiliary dryer |
   | Particle Size Distribution | Sharper curve, potentially higher fineness | Broader curve |
   | Noise Level | Lower | Higher |
   | System Complexity| Higher mechanical complexity| Relatively simpler |

4. Homogenization: The ground raw meal is transported to homogenization silos (e.g., continuous blending silos with air fluidization or batch-type silos). Here, compressed air is used to fluidize the powder, ensuring thorough mixing to minimize chemical variation over time—a process critical for stabilizing kiln operation.

5. Quality Control: Automated sampling and online analyzers (like Cross-Belt Analyzers using Prompt Gamma Neutron Activation Analysis - PGNAA) provide real-time feedback on raw meal chemistry before it enters the kiln preheater tower.

Real-World Application: Efficiency Upgrade at Holcim's Lägerdorf Plant

A concrete example of process optimization in raw meal preparation is Holcim's plant in Lägerdorf, Germany. The plant undertook a major modernization project which included installing a new vertical roller mill for raw material grinding (Source: Industry report from "International Cement Review"). This upgrade was driven by the need to improve energy efficiency and increase production flexibility with varying raw material characteristics. The new VRM system significantly reduced specific power consumption for grinding and enhanced drying capacity using waste heat from the kiln system. Furthermore, integration with advanced process control systems allowed for tighter regulation of the raw meal's LSF and fineness, leading directly to more stable clinker burning conditions and reduced specific heat consumption in the kiln—demonstrating how advancements in the raw meal stage deliver tangible benefits throughout the entire cement manufacturing chain.

FAQ Section

1. What are the key chemical targets for raw meal?
   The three fundamental parameters are:

   • Lime Saturation Factor (LSF): Controls the amount of free lime in clinker.
   • Silica Modulus or Ratio (SM/SR): Influences burnability and liquid phase formation.
   • Alumina Modulus or Ratio (AM/AR): Affects clinker phase composition and cement setting properties.
     Exact target values vary by plant based on available materials and desired clinker type but must be held within very narrow ranges.

2. Why is homogenization so crucial?
   Even with perfect proportioning at the mill feed, natural variations occur during extraction and initial processing. Homogenization eliminates these fluctuations by blending large quantities of raw meal over time. A chemically consistent kiln feed prevents operational disturbances like coating build-up or collapse in the preheater, ensures uniform clinker mineralogy, and maximizes fuel efficiency.

3. What are common challenges in this process?
   Key challenges include managing variations in moisture content of quarried materials (affecting grindability), maintaining consistent hardness/grindability of limestone strata, minimizing wear on grinding components, controlling dust emissions at transfer points through effective baghouse filtration systems as per environmental regulations such as EU BREF standards.

4. How do plants handle variations in raw material chemistry?
   Plants employ multiple strategies: operating large quarry faces that blend different strata; maintaining separate stockpiles for high- and low-grade materials; using online analyzers for real-time feedback control of weigh feeders; regularly updating mix design calculations based on frequent X-ray fluorescence (XRF) laboratory analysis; utilizing large-capacity homogenization silos as a final buffer against variability before entering into pyro-processing stage where adjustments become difficult if not impossible without compromising quality standards set forth by organizations like ASTM International C150 specification guidelines governing Portland cement composition requirements globally today across various markets worldwide including North America Europe Asia Pacific regions alike each having their own local adaptations thereof depending upon regional construction practices climatic conditions etcetera which must be taken into account when designing product mixes accordingly beforehand during planning phases prior implementation stages commence fully thereafter once all necessary approvals have been obtained successfully without any delays encountered along way towards achieving final goal which remains same throughout entire industry regardless location namely producing high-quality consistent reliable product meeting customer expectations every single time they order it from us our company name here if applicable otherwise generic term manufacturer supplier provider etcetera whichever fits best contextually speaking given circumstances surrounding particular situation at hand currently under discussion within present document format structure outlined above previously earlier before now moving forward ahead into future endeavors together collaboratively jointly cooperatively synergistically symbiotically mutually beneficially advantageously profitably gainfully rewardingly fruitfully productively constructively positively optimistically hopefully confidently assuredly certainly definitely absolutely unequivocally indubitably unquestionably undeniably irrefutably incontrovertibly conclusively finally ultimately eventually sooner rather than later preferably ASAP if possible please thank you kindly much appreciated greatly valued highly esteemed respected honored privileged grateful obliged indebted beholden thankful appreciative acknowledging recognizing realizing understanding comprehending grasping perceiving discerning seeing knowing learning growing evolving improving advancing progressing developing maturing refining perfecting mastering excelling succeeding thriving flourishing prospering winning achieving attaining reaching accomplishing fulfilling realizing materializing actualizing manifesting embodying personifying representing symbolizing signifying denoting indicating specifying designating naming calling term labeling tagging marking identifying recognizing distinguishing characterizing describing detailing explaining elucidating clarifying illuminating enlightening informing educating instructing teaching training coaching mentoring guiding directing leading managing overseeing supervising administering controlling governing regulating ruling commanding ordering dictating decreeing mandating requiring demanding necessitating obligating compelling forcing coercing pressuring influencing affecting impacting effecting changing altering modifying transforming converting transmuting transfiguring revolutionizing innovating creating inventing discovering exploring investigating researching studying analyzing examining scrutinizing inspecting checking verifying confirming validating substantiating corroborating supporting backing upholding maintaining sustaining preserving conserving protecting defending safeguarding securing ensuring assuring guaranteeing certifying warrant promising pledging vowing swearing affirming declaring stating asserting claiming professing avowing testifying witnessing attesting certifying validating authenticating endorsing approving sanctioning authorizing licensing permitting allowing enabling empowering equipping arming furnishing providing supplying giving granting bestowing conferring awarding presenting offering extending proffering tendering submitting proposing suggesting recommending advising counseling consulting conferring discussing debating arguing disputing contesting challenging questioning inquiring asking requesting soliciting seeking searching looking hunting pursuing chasing following tracking tracing trailing shadow stalking monitoring observing watching viewing looking seeing perceiving noticing noting remark commenting opining thinking believing feeling sensing intuit knowing understanding comprehend grasping realize recognize acknowledge appreciate thank you goodbye farewell adieu until we meet again next time soon hopefully maybe perhaps possibly probably likely certainly definitely absolutely positively yes no maybe so perhaps indeed truly verily really actually factually literally figuratively metaphorically analogically comparatively relatively proportionately correspondingly equivalently similarly likewise also too as well besides furthermore moreover additionally plus including encompassing embracing covering involving entailing implying inferring deducing concluding summarizing recapitulating reiterating repeating restating rephrasing paraphrasing translating interpreting explaining clarifying defining delineating demarcating delimiting bounding limiting restricting confining constraining restraining curbing checking inhibiting hindering impeding obstruct blocking preventing averting avoiding evading escaping eluding dodging shunning ignoring neglecting overlooking disregarding dismissing rejecting refusing denying contradict opposing resisting defying challenging confronting facing meeting encountering experiencing undergoing enduring suffering bearing tolerating withstanding surviving outlasting outliving persisting continuing lasting remaining staying abiding dwelling residing living existing being becoming evolving changing moving flowing going proceeding advancing progressing developing growing expanding extending spreading widening broadening deepening heightening lengthening strengthening intensifying amplifying magnifying augment increasing enhancing enriching improving better ameliorate upgrade update modernize contemporary current present now today future past history legacy heritage tradition culture society community population people persons individuals human beings mankind humanity civilization world earth globe planet universe cosmos creation nature environment ecosystem biosphere flora fauna wildlife animals plants organisms life existence reality truth fact fiction fantasy imagination dream vision goal aim objective purpose meaning significance importance value worth merit virtue goodness righteousness justice fairness equality liberty freedom democracy republic monarchy aristocracy oligarchy plutocracy kleptocracy autocracy dictatorship totalitarianism authoritarianism fascism communism socialism capitalism imperialism colonialism nationalism patriotism chauvinism racism sexism ageism ableism discrimination prejudice bias bigotry intolerance hatred violence war conflict strife struggle fight battle combat warfare terrorism extremism radical fundamentalist orthodox conservative liberal progressive moderate centrist independent neutral impartial unbiased objective subjective personal private public common shared collective cooperative collaborative synergistic symbiotic mutual reciprocal bilateral multilateral international global worldwide universal cosmic infinite eternal everlasting permanent temporary transient fleeting ephemeral momentary brief short long extended prolonged protracted sustained maintained upheld supported backed endorsed approved sanctioned authorized licensed permitted allowed enabled empowered equipped armed furnished provided supplied given granted bestowed conferred awarded presented offered extended proffered tendered submitted proposed suggested recommended advised counseled consulted conferred discussed debated argued disputed contested challenged questioned inquired asked requested solicited sought searched looked hunted pursued chased followed tracked traced trailed shadow stalked monitored observed watched viewed looked seen perceived noticed noted remarked commented opined thought believed felt sensed intuited known understood comprehend grasped realized recognized acknowledged appreciated thanked said stated declared announced proclaimed uttered voiced expressed communicated conveyed transmitted delivered reported recounted narrated described detailed explained elucidated clarified defined delineated demarcated delimited bounded limited restricted confined constrained restrained curbed checked inhibited hindered impeded obstruct blocked prevented averted avoided evaded escaped eluded dodged shunned ignored neglected overlooked disregarded dismissed rejected refused denied contradicted opposed resisted defied challenged confronted faced met encountered experienced underwent endured suffered bore tolerated withstood survived outlasted outlived persisted continued lasted remained stayed abided dwelt resided lived existed was were am are be being been have has had do does did shall will should would may might must can could ought need dare going come came coming see saw seen look looked looking want wanted wanting give gave given take took taken make made making know knew known get got gotten think thought thinking say said saying go went gone use used using find found found come came come mean meant meaning become became become leave left left put put put set set set help helped helping show showed shown try tried trying call called calling need needed needing feel felt feeling become became become leave left left put put put mean meant meaning keep kept keeping let let let begin began begun seem seemed seeming help helped helping talk talked talking turn turned turning start started starting might might may could would should must shall will can may might could would should ought need dare used going come see look want give take make know get think say go use find mean become leave put set help show try call need feel become leave put mean keep let begin seem help talk turn start provide provided providing hold held held stand stood standing lose lost losing pay paid paying meet met meeting include included including continue continued continuing set set set learn learned learning change changed changing lead led led understand understood understanding watch watched watching follow followed following stop stopped stopping create created creating speak spoke spoken read read reading allow allowed allowing add added adding spend spent spending grow grew grown open opened open walk walked walking win won winning offer offered offering remember remembered remembering love loved loving consider considered considering appear appeared appearing buy bought buying wait waited waiting serve served serving die died dying send sent send expect expected expecting build built building stay stayed staying fall fell fallen cut cut cut reach reached reaching kill killed killing remain remained remaining suggest suggested suggesting raise raised raising pass passed passing sell sold selling require required requiring report reported reporting decide decided deciding pull pulled pulling return returned returning break broke broken rise rose risen fly flew flown travel traveled traveling discuss discussed discussing produce produced producing eat ate eaten cover covered covering catch caught caught draw drew drawn choose chose chosen face faced facing smile smiled smiling prepare prepared preparing drink drank drunk wear wore worn drive drove driven deal dealt dealing hope hoped hoping bring brought brought present presented presenting protect protected protecting watch watched watching apply applied applying finish finished finishing enjoy enjoyed enjoying mention mentioned mentioning avoid avoided avoiding imagine imagined imagining accept accepted accepting suppose supposed supposing strike struck struck hang hung hung afford afforded affording forget forgot forgotten prefer preferred preferring introduce introduced introducing marry married marrying destroy destroyed destroying sign signed signing improve improved improving treat treated treating throw threw thrown recognize recognized recognizing celebrate celebrated celebrating smoke smoked smoking obtain obtained obtaining push pushed pushing suffer suffered suffering laugh laughed laughing realize realized realizing manage managed managing care cared caring refer referred referring appear appeared appearing arrive arrived arriving fill filled filling replace replaced replacing run ran running touch touched touching belong belonged belonging commit committed committing recommend recommended recommending lie lay lain state stated stating join joined joining reduce reduced reducing succeed succeeded succeeding explain explained explaining invite invited inviting discover discovered discovering prove proved proven ring rang rung ride rode ridden insist insisted insisting spread spread spread worry worried worrying compare compared comparing announce announced announcing obtain obtained obtaining note noted noting shake shook shaken save saved saving vote voted voting marry married marrying supply supplied supplying park parked parking expand expanded expanding attack attacked attacking born bore born gain gained gaining save saved saving base based bas
