The Modern Slag Processing Unit: Transforming Industrial Byproduct into a Valuable Resource

Introduction: The Problem and the Opportunity

For centuries, slag—the stony waste matter separated from metals during the smelting or refining of ore—was viewed as little more than an industrial nuisance. Vast slag heaps became a defining, if unsightly, feature of landscapes near steel mills and smelters. This material not only consumed valuable land but also represented a lost economic opportunity and posed potential environmental challenges due to leaching of heavy metals.

Today, that paradigm has shifted entirely. Driven by stringent environmental regulations, the pursuit of circular economy principles, and the rising cost of virgin raw materials, slag has been reincarnated as a high-value secondary raw material. At the heart of this transformation is the modern Slag Processing Unit—a sophisticated installation designed to efficiently process molten or aged slag into consistent, specification-grade products for the construction and cement industries.

This article delves into the core of these units, exploring their technology, market applications, and the engineering that turns waste into wealth.

The Core of the Operation: Processing Technology and Equipment

A slag processing unit is more than just a crusher; it is an integrated system designed for size reduction, liberation, separation, and material handling. The specific configuration depends on whether the slag is processed in a molten state (hot stage) or after it has cooled and solidified (cold stage).

1. Hot Stage Processing (Granulation and Pelletization)

This method deals with molten slag directly from the metallurgical furnace (typically a blast furnace for iron production). The key advantage is the utilization of the slag's residual heat, saving energy and creating products with desirable cementitious properties.

Granulation: Molten slag (at around 1,500°C) is subjected to high-pressure water jets in a granulator. This rapid quenching causes the material to fracture and vitrify (form a glassy structure), resulting in small, granular particles known as Granulated Blast Furnace Slag (GBFS). GBFS is a primary component in producing Portland Slag Cement (PSC), which offers lower heat of hydration and higher resistance to chemical attacks compared to ordinary Portland cement.
Key Equipment: High-pressure water systems, granulation tanks, dewatering bins, and drying systems (like rotary drums or fluidized bed dryers).

2. Cold Stage Processing (Crushing and Screening)

This is the most common method for processing air-cooled blast furnace slag (BFSlag) and steelmaking slags (BOF and EAF slags). The goal is to liberate metallic iron trapped within the slag matrix and produce aggregates of various sizes.

The process typically follows these stages:

Primary Crushing: Large slabs of solidified slag are reduced to manageable sizes using robust jaw crushers or gyratory crushers.
Screening: The crushed material is passed over vibrating screens to separate it into initial size fractions.
Metal Recovery: This is a critical step for both economic yield and product quality. The crushed slag undergoes magnetic separation—using powerful drum magnets or overhead magnetic separators—to extract ferrous scrap. This recovered metal is sent back to the furnace, providing significant cost savings.

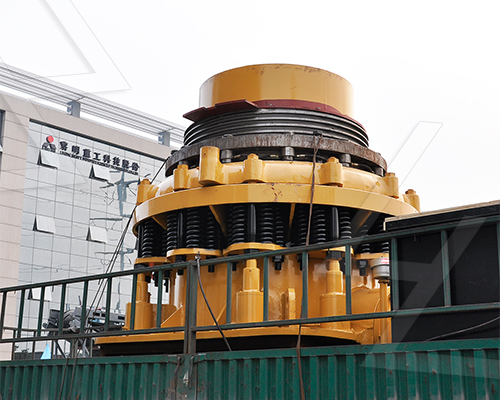

Secondary & Tertiary Crushing: To achieve finer aggregate sizes or improve cubicity (the shape of the particles), cone crushers or impact crushers are employed.
Final Screening & Stockpiling: The fully processed slag is screened into precise commercial fractions (e.g., 0-5mm for sand replacement, 5-20mm for concrete aggregate) and stockpiled for dispatch.

Advanced Separation Techniques:

Modern units often incorporate additional technologies for enhanced purity and value-addition:
Air Classification: To remove lightweight contaminants or produce very fine fractions.
Density Separation: Using jigs or hydrocyclones to separate heavier non-ferrous metals or undesirable minerals.
X-ray Sorting: Advanced sensor-based sorting to identify and remove non-magnetic metallic components like aluminum or copper.

Market Applications: From Waste to Worth

The output from a well-designed slag processing unit finds robust markets:

Construction Aggregates: Processed slag aggregate is a superior alternative to natural gravel and crushed stone. It offers excellent stability, drainage properties (due to its vesicular nature), and high abrasion resistance, making it ideal for road bases, asphalt pavement, railway ballast, and ready-mix concrete.
Cementitious Applications: As mentioned, GBFS is a direct substitute for clinker in cement manufacturing. Slag cement reduces the carbon footprint of concrete significantly and enhances its long-term durability against sulfate attack and alkali-silica reaction.
Agricultural Use: Ground granulated slag can be used as a soil conditioner due to its calcium silicate content, which can help ameliorate acidic soils.
Specialty Applications: Fine-ground slag can be used in grouts, masonry products, and even as a raw feed back into the blast furnace.

Engineering Considerations: Designing for Efficiency

Designing an effective processing unit requires meticulous planning:

1. Feedstock Analysis: Understanding the chemical composition, hardness, abrasiveness,and moisture content of the incomingslagis paramount.
2. Plant Layout: The flow must be logicalto minimize material handlingand energy consumption.Considerationfor dust suppression(through misting systemsor baghouses)and noise controlis critical forenvironmental compliance.
3. Equipment Selection: Crushers must be chosen based ontheslag'sabrasiveness; screensmustbe sizedfor required throughput;and magnetic separatorsmust have sufficient strengthto recover fine ferrous particles.
4. Automation & Control: Modern plants are controlled bya PLC(Programmable Logic Controller)-based systemthat monitors conveyor speeds,crusher loads,and screen performance tomaximize uptimeand product consistency.

The Future Outlook

The futureofslagprocessing liesin further integrationwiththe circular economy.Innovationsare focusingon:
Enhanced Metal Recovery: Developing more efficient methodsto recover non-ferrous metalslike zincand copperfromsteel slags.
Carbon Capture: Researchis underwayto use slagas amediumfor mineral carbonation,a process where CO₂is permanently storedwithin thematerialby forming stable carbonates.
Zero-Waste Plants: The goal isto ensure that100% oftheslaginputis utilized,eitheras avaluable productorasan internal process input,directly supportingindustrial symbiosis.

---

Frequently Asked Questions (FAQ)

Q1: What is the main difference between blast furnace slagand steel slag?
A: Blast furnace slag(BFS)is formedinthe iron-making processandis primarilycomposedofsilicatesandaluminosilicatesof calcium.Itis largelycementitious.GranulatedBFS(GBFS)isa key ingredientin eco-friendly cements.Steelslag,in contrast,a byproductofsteel-makingin Basic Oxygen Furnaces(BOF)or Electric Arc Furnaces(EAF),contains higher levelsofiron oxidesand other metals.Itisharderand more abrasive,makingit idealfor constructionaggregatesbut less suitablefor cementwithout further processing.

Q2: Is processedslag environmentally safe?
A: Yes,whensourcedfromreliable producersand processed correctlyto meet international standards(e.g.,EN standardsin Europe),slagsare considerednon-hazardousand safe forusein construction.Extensive leachingtestsare conductedto ensurethatheavy metalsare boundwithinthe mineralmatrixand donotleachinto groundwaterat harmful concentrations.In fact,their use conservesnatural resourcesandreduceslandfill waste.

Q3: Whatisthetypical payback periodfor investingina newSlagProcessingUnit?
A:Thepayback periodcan varywidelybasedon scale,thetechnology deployed,thecostofrawslaginput,and themarketpricefortheoutputproducts.For amedium-to-large scalefacilityprocessingsteelslagwith efficientmetal recovery,a well-runoperationcan seea returnon investmentwithin 2to4 years.Revenue streamsfromaggregate sales,coupledwiththevalueofrecovered scrap metal,maketheeconomicsvery attractive.

---

Engineering Case Study: Revitalizing an Old Steelworks Site

Project Background:
A major steel producer in Europe was facing significant costs associated with disposing of its legacy stockpiles of steelmaking slag—over 2 million tons accumulated over decades.The site also neededa sustainable solutionforits ongoingproductionofapproximately200,tonsper year.The goalwasto clearthelandfor redevelopmentwhile creatinga new revenue stream.

Solution Implemented:
A turnkey cold-processingslag recycling plantwas designedand installedon-site.The plantfeatured:
1.A heavyduty apron feederfor feedinglarge slabsinto aprimary jaw crusher.
2.A primary vibrating screento scalpoff oversizematerialanda finesfraction.
3.A seriesofpowerful magnetic separatorsplacedafter eachcrushingstage(maximizingferrousrecovery>98%).
4.A secondary cone crusheranda tertiary impactcrusherfor producinghigh-qualitycubical aggregates.
5.A multi-deck final screeningplantto producefour certifiedaggregateproductsandsanda filler material.

Results & Benefits:

• Within18 monthsofoperation,thelegacy stockpilewas beingprocessedat arateof150tph,turninga liabilityintoan asset.The recoveredferrousscrap(8-10%ofthefeed)was sentbacktothecompany'sownEAF furnaces,directly reducingtheir iron oreconsumption.The high-qualityaggregateswere soldtolocal road constructionandinfracstructureprojectsatapremiumcomparedtonaturalaggregates.This projectnotonlyprovideda strongfinancial returnbut also significantlyenhancedthecompany'senvironmental credentialsand communityrelationsbycleaningupa historical eyesore
