Optimizing Crushing Performance: A Guide to Stone Crusher Vibrating Feeder Specifications

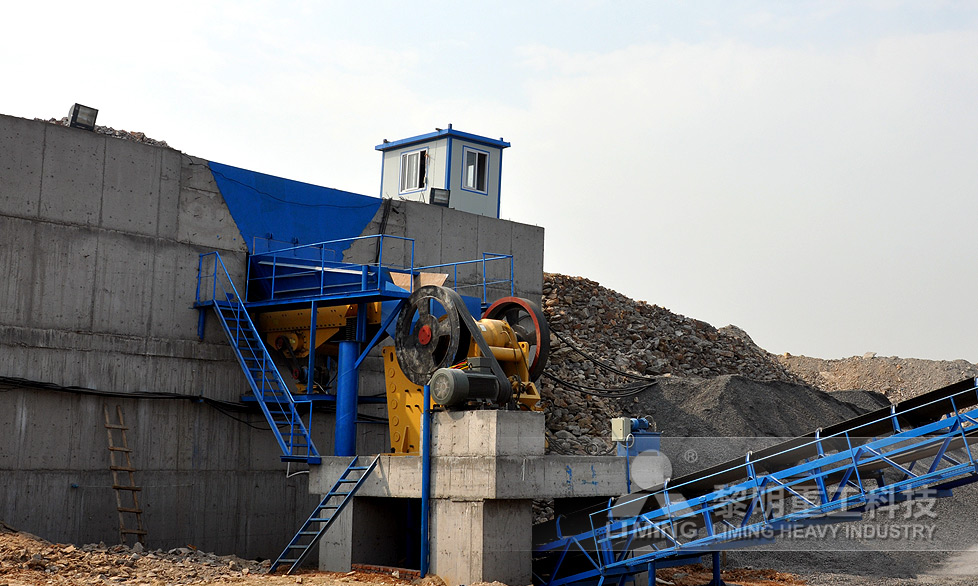

The efficient and continuous operation of a stone crushing plant hinges significantly on the performance of its vibrating feeder. Acting as the crucial link between the raw material stockpile and the primary crusher, a properly specified vibrating feeder ensures regulated material flow, prevents crusher choke-feed or starvation, and maximizes overall system productivity. This article delves into the key specifications of vibrating feeders for stone crushers, explaining their impact on plant operation, providing comparative insights, and outlining practical considerations for selection and maintenance.

Core Specifications and Their Impact

Selecting the right vibrating feeder involves balancing multiple technical parameters with site-specific material characteristics and production goals. The following are the most critical specs:

1. Trough Size and Capacity: The width and length of the feeder trough determine its physical ability to handle material volume. Capacity, measured in tons per hour (TPH), must be matched to the crusher's intake capability, typically set at 10-20% higher than the crusher's rated capacity to ensure consistent feed without overloading.
2. Drive Mechanism (Type): This defines how vibration is generated.
   • Electromagnetic: Uses an electromagnetic drive for high-frequency, low-amplitude vibrations. Ideal for fine, dry materials and precise flow control in applications like sand feeding.
   • Electromechanical (Motor-Driven): Utilizes rotating eccentric weights on one or two motors to create vibration. This is the most common type for heavy-duty stone crushing, offering robust performance, adjustable amplitude/flow rate, and suitability for large, abrasive feed like run-of-quarry rock.
   • Grizzly Feeders: Incorporate a heavy-duty section of parallel bars (grizzly bars) at the discharge end. They perform simultaneous feeding and primary screening, allowing fines to bypass the crusher for increased efficiency.
3. Amplitude and Frequency: Amplitude is the stroke distance of vibration, while frequency is its speed (RPM or Hz). High amplitude with low frequency is typical for handling large lumps and high tonnages (common in primary crushing), whereas high frequency with low amplitude suits controlled feeding of smaller material.
4. Installation Angle: The slope at which the feeder is mounted affects material travel speed. A steeper angle increases flow rate but can accelerate wear; a flatter angle allows for more controlled discharge.
5. Construction & Liner Options: Feeders handling abrasive stone require robust construction with wear-resistant liners (e.g., AR steel plates, replaceable rubber liners) in the trough to extend service life.

Comparative Overview: Electromechanical vs. Grizzly Feeder

For primary crushing stations feeding jaw or gyratory crushers, electromechanical and grizzly feeders are predominant. The choice depends largely on material pre-screening needs.

Feature	Electromechanical Vibrating Feeder	Vibrating Grizzly Feeder (VGF)
Primary Function	Regulated transport of bulk material from hopper to crusher.	Transport + Preliminary sizing/scalping before crushing.
Key Design	Solid pan or trough; one or two vibrator motors.	Two-section design: solid feeder section + downstream grizzly bar section.
Material Handling	Handles all-in feed directly from dump trucks/loaders.	Separates undersize material (e.g., soil, sand) through grizzly bars before it enters the crusher cavity.
Best For	Situations where pre-removal of fines is not critical or is done separately; cohesive or sticky materials that may clog bars.	Quarry run material with significant volume of undersize; applications where removing fines reduces crusher load and increases total plant throughput.
Flow Control	Excellent control via variable frequency drive (VFD) on motors.	Good control; however, segregation occurs over the grizzly section.

Real-World Application Case Study

A granite quarry in Texas was experiencing frequent bottlenecks at its primary jaw crusher station due to inconsistent feed from an old apron feeder and clay contamination in the shot rock during wet weather.

• Challenge: Uneven feed caused cyclic loading of the jaw crusher, reducing throughput by an estimated 15%. Clay would plug up the crusher cavity during rains, requiring frequent shutdowns for cleaning.
• Solution: The quarry replaced the apron feeder with a heavy-duty electromechanical vibrating grizzly feeder (VGF) sized at 800 TPH capacity.
  • The VGF was specified with a 12-foot long solid pan section followed by a 6-foot long section with 4-inch gap grizzly bars.
  • It featured high-strength Mn steel liners on the pan and replaceable alloy steel grizzly bars.
  • Vibrator motors were selected for high amplitude/low frequency tuning suitable for large granite boulders.
• Outcome:
  1. The consistent vibration provided uniform draw-down from the hopper and steady feed to the jaw crusher.
  2. During operation, rain-borne clay and sub-4-inch fines were effectively screened out through the grizzly bars onto a bypass conveyor, preventing them from entering—and plugging—the jaw chamber.
  3. Crusher utilization increased by ~20%, overall plant throughput rose by approximately 12%, and unplanned downtime for cleaning was virtually eliminated.

---

Frequently Asked Questions (FAQ)

Q1: How do I determine the correct size/capacity of a vibrating feeder for my crusher?
The feeder capacity should be selected based on your target maximum production rate (TPH), not just your crusher's rated capacity as stated in its brochure—which often represents ideal conditions—but also considering factors such as bulk density of your specific stone type (~1/6 TPH per cubic foot), maximum lump size (~80% of trough width), desired surge loading factor (~25% above average rate), moisture content affecting flowability etc.; consulting directly with reputable manufacturers who can perform application analysis based upon these parameters will yield optimal results rather than relying solely upon simple calculations alone

Q2: Can I adjust feed rate after installation? How?
Yes – most modern electromechanical feeders allow adjustable feed rates through several methods:

• Changing eccentric weight positions on motor shafts alters amplitude thus changing stroke intensity thereby altering volumetric output accordingly
• Installing Variable Frequency Drives allows operators adjusting motor speed thereby changing frequency which modifies conveying velocity enabling precise tuning without stopping operations

Q3: What are common maintenance issues with these feeders?
Primary concerns involve wear-and-tear due abrasion impact:

• Wear Liners/Trough Plates – Regular inspection replacement when worn thin prevents damage underlying structure
• Spring Failures – Isolation springs supporting deck may crack fatigue over time requiring periodic checks especially under harsh operating conditions
• Bearing/Bushing Wear within vibrator assembly necessitates scheduled lubrication monitoring temperature levels according manufacturer guidelines ensuring longevity

---

In conclusion specifying appropriate stone-crusher-vibrating-feeder requires careful consideration beyond mere catalog ratings Understanding interplay between drive type trough design amplitude-frequency settings alongside specific material characteristics ensures reliable efficient transfer ultimately protecting downstream equipment while maximizing aggregate production output throughout entire processing circuit
