Engineering Resilience and Profitability in Demanding Applications: A New Paradigm in Block Manufacturing for Mineral Processing
As senior operational leaders, we are defined not by the challenges we face, but by the efficacy of the solutions we deploy. In the relentless environment of mineral beneficiation and aggregate production, the primary crushing stage often represents a critical bottleneck. It is here that the entire downstream process—from grinding efficiency to leach recovery—is fundamentally shaped. The conventional approach to block manufacturing, typically using older jaw or impact crusher technology, frequently falls short, manifesting as a cascade of operational inefficiencies that directly erode our bottom line.
The Operational Bottleneck: Quantifying the Cost of Inefficiency
Consider a typical scenario in a copper porphyry operation. The run-of-mine (ROM) ore is heterogeneous and highly abrasive. A primary jaw crusher struggles with slabby material, leading to frequent bridging and downtime. The product is inconsistent, with a high proportion of elongated and flaky particles. This poor feed shape negatively impacts the secondary cone crushers and, most critically, the grinding mills.
The Coalition for Eco-Efficient Comminution (CEEC) has consistently highlighted that grinding alone can account for over 50% of a mine's total energy consumption. When the primary crusher fails to deliver an optimally shaped, consistently graded feed, the grinding circuit must work significantly harder, consuming excessive power and grinding media. The pain points are clear:
- Low Overall Recovery: Inconsistent particle size distribution (PSD) in heap leach operations leads to poor percolation and channeling, locking valuable metal within uncrushed fines or impermeable compacted layers.
- High Wear Part Consumption: Abrasive ores rapidly degrade crusher liners, resulting in exorbitant consumable costs and frequent, unplanned maintenance shutdowns.
- Excessive Energy Costs: An inefficiently loaded grinding mill, due to poor crusher product, is one of the largest single drains on site power.
The Engineering Solution: A Philosophy of Precision and Durability

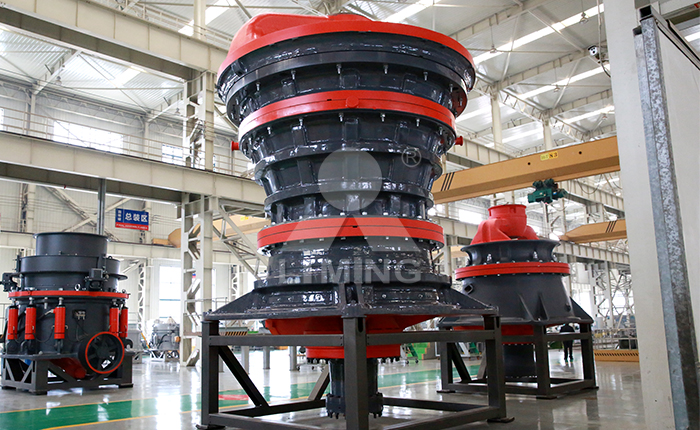

The modern solution lies not in incremental improvement, but in a fundamental re-engineering of the crushing principle. Advanced gyratory and cone crushers designed for primary block manufacture are built around a core philosophy: optimized kinematics and controlled fragmentation.
The engineering focus is on three critical areas:
- Crushing Chamber Design: The chamber geometry is precisely calculated to ensure progressive rock-on-rock inter-particle crushing. This "layer-cake" compression minimizes direct contact with liners, dramatically reducing wear part consumption rates.
- Mantle Kinematics: The optimized eccentric throw and high stroke combination ensures a consistent crushing action throughout the chamber cycle. This produces a more uniform product with a significantly higher percentage of cubical particles—the ideal feed for downstream processes.
- Intelligent Hydraulic Systems: Modern crushers utilize advanced hydraulic systems for real-time adjustment of the closed-side setting (CSS) and fully automated clearing from uncrushable objects. This ensures consistent product gradation and maximizes plant availability.
The following table contrasts key performance indicators between conventional technology and an advanced primary gyratory crusher:
| Key Performance Indicator | Conventional Jaw Crusher | Advanced Primary Gyratory Crusher |
|---|---|---|
| Throughput (tph) | Baseline | +15% to +25% |
| Product Shape (Cubical %) | 60-70% | 85%+ |
| Liner Life (Abrasive Ore) | Baseline | +30% to +50% |
| Specific Energy Consumption | Higher due to inefficiency | Optimized through precision crushing |
| Operational Availability | Lower due to bridging & liner changes | Higher with automation & robust design |
Proven Applications & Economic Impact: From Metal Ores to Premium Aggregates
The versatility of this technology is demonstrated across diverse material contexts:
-
Application 1: Maximizing Copper Leach Recovery
- Challenge: A South American operation needed to improve gold and copper recovery from a low-grade oxide ore stack.
- Solution: Deployment of a high-capacity gyratory crusher focused on producing a consistent -6 inch product with minimal fines.
- Economic Impact:
- Quality Improvement: Achieved PSD specification compliance of >95%, eliminating percolation issues.
- Recovery Increase: Enhanced metal recovery by 3-5% due to improved solution contact.
- Cost Reduction: Reduced liner cost per ton by 20% through superior metallurgy and design.
-
Application 2: Producing High-Value Railway Ballast from Granite
- Challenge: An aggregate producer needed to meet stringent geometric specifications for railway ballast (high fracture faces, cubical shape).
- Solution: Implementation of a cone crusher with a multi-layer crushing cavity.
- Economic Impact:
- Quality Improvement: Produced over 90% cubical product, commanding a premium market price.
- Throughput Increase: Achieved a 20% increase in tons per hour versus the previous impact crusher setup.
- Wear Life Extension: Manganese steel liner life extended by 40%, slashing operating costs.
The Strategic Roadmap: Digitalization and Sustainable Operations
The evolution of this technology is intrinsically linked to digitalization and sustainability goals. The next-generation machine tool is not merely mechanical but an intelligent node within the plant ecosystem.
- Integration with Process Optimization Systems: Crushers now offer seamless integration with Plant Process Optimization Systems, allowing for real-time CSS adjustment based on feed conditions and downstream mill load.
- Predictive Maintenance: Advanced sensors monitor pressure, temperature, power draw, and cavity level. Data analytics platforms can predict liner wear and component failure weeks in advance, transforming maintenance from reactive to predictive.
- Sustainable Design: Designs now facilitate easier recycling of worn manganese steel liners. Furthermore, optimized specific energy consumption directly reduces the operation's carbon footprint.
Addressing Critical Operational Concerns
Q: What is the expected liner life in hours when processing highly abrasive iron ore?
A: While site-specific (feed size, work index), expect between 1,800 to 2,400 hours for premium manganese liners in an optimized gyratory crusher. Key influencing factors include correct feed distribution, avoiding trickle feed conditions, and using appropriate chamber profiles.
Q: How does your mobile rock crusher setup time compare?
A: Modern mobile primary plants with integrated gyratory or jaw crushers can be fully operational in under 48 hours from arrival on site—a fraction of the time required for constructing a stationary foundation-based plant. Standard crew size is 3-4 personnel.
Q: Can your grinder handle variations in feed moisture without compromising output?
A: Yes. Gyratory crushers are inherently less sensitive to moisture than impactors or secondary cones prone to clogging. For high-moisture clays ahead of crushing robust apron feeders scalping screens are recommended as part of circuit design.jpg)
Case in Point: A Plant Deployment Study
Client: Southeast Asia Barite Processing Co.
Challenge: Upgrading their comminution circuit was essential for consistently producing high-purity API-grade barite at 325-mesh fineness (>97% passing) for oilfield drilling markets while reducing prohibitively high energy costs from their legacy ball mill circuit.
Solution Deployed & Configuration:
A two-stage crushing circuit was implemented featuring:
- A rugged jaw crusher for initial ROM reduction.
- A high-precision cone crusher configured in closed-circuit with a vibrating screen to produce a consistent -12mm feed for the new vertical roller mill.
Measurable Outcomes:
- Product Fineness Achieved**: Consistently achieved >98% passing 325-mesh specification
- System Availability**: Crusher circuit availability recorded at >94%
- Energy Consumption**: Reduced specific energy consumption by ~30 kWh/ton compared
- Return on Investment Timeline**: Full ROI was realized within just under two years through combined savings on energy reduced grinding media consumption increased throughput enabling market expansion
In conclusion moving beyond traditional block manufacturing paradigms toward engineered solutions grounded in precision kinematics intelligent automation data-driven optimization represents most significant lever we have pull improve both resilience profitability our operations It strategic investment pays dividends not only balance sheet but also long term sustainability license operate
