From Ore to Essential Metal: A Comprehensive Guide to Tin Mineral Processing

1. Industry Background: The Silent Workhorse

Tin is one of humanity's oldest known metals, with its use in bronze alloys dating back over 5,000 years, marking an entire epoch of human civilization. While it may not command the same spotlight as copper or lithium in modern discourse, tin remains a critical industrial metal, indispensable in our technologically driven world. The global tin industry is characterized by a concentrated supply chain, with the majority of production originating from a handful of countries, primarily China, Indonesia, Myanmar, and Peru.

The journey of tin begins not in smelters or factories, but in the earth's crust. Primary tin deposits are most commonly found in granite-related systems, often in the form of hydrothermal veins. The most crucial tin-bearing mineral is cassiterite (SnO₂), which accounts for over 90% of the world's tin production. Cassiterite is remarkably dense and resistant to weathering, which leads to its secondary accumulation in alluvial or eluvial deposits—these are the placer deposits that have been mined for centuries.

Modern tin mining involves both hard-rock (lode) mining for primary deposits and dredging or hydraulic methods for alluvial deposits. However, the raw ore extracted from these mines typically contains only a small fraction of actual cassiterite—often less than 1% Sn. This low natural abundance makes efficient and effective mineral processing not just beneficial, but absolutely essential for the economic viability of any tin mining operation.

2. The Core of the Process: Unlocking Tin from Cassiterite

The objective of tin mineral processing is simple: to separate cassiterite from the vast quantity of worthless gangue material (such as quartz, silicates, and other heavy minerals like hematite or tourmaline) and produce a high-grade concentrate suitable for smelting. This is achieved through a multi-stage process that leverages the unique physical properties of cassiterite.

A. Comminution: Liberation is Key

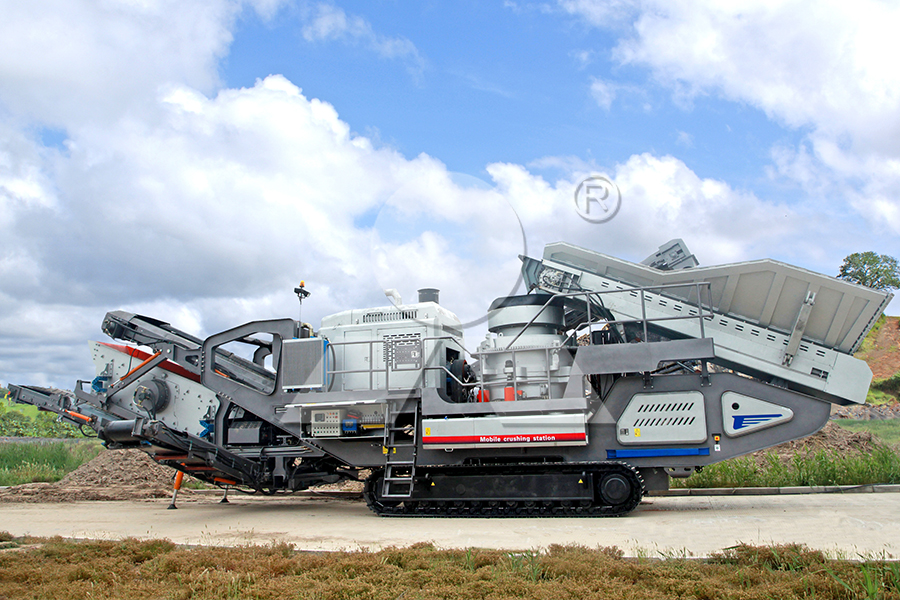

The process begins with crushing and grinding. Run-of-Mine (ROM) ore is first reduced in size through primary jaw crushers or gyratory crushers. Subsequent stages using cone crushers further reduce the particle size.

The most critical step is grinding in ball mills or rod mills. The goal is to achieve "liberation"—breaking the ore down to a size where individual cassiterite grains are freed from the surrounding gangue minerals without being "over-ground" into an excessively fine slime. Cassiterite is brittle, and excessive grinding can create fine particles that are difficult to recover in subsequent stages, leading to significant metal loss. This makes grinding control a pivotal economic factor.

B. Gravity Separation: The Primary Workhorse
Given cassiterite's high specific gravity (6.8-7.1 compared to quartz at 2.65), gravity separation is the most natural and cost-effective method for its concentration.

Jigging: One of the oldest methods, jigs use pulsating water to stratify particles by density. Heavier cassiterite settles at the bottom of the bed and is removed as concentrate.
Spirals: Ore slurry is fed down helical troughs. Centrifugal force pushes heavier particles to the outer wall while lighter gangue stays inward, creating a continuous separation.
Shaking Tables: These tables use a combination of riffles and lateral shaking motion with water flow. The differential movement causes dense cassiterite particles to "walk" up the deck diagonally across the riffles while lighter particles are washed straight down.

A typical flowsheet involves multiple stages of gravity separation—rougher, scavenger, and cleaner—to progressively upgrade the concentrate grade and maximize recovery.

C. Pre-Concentration: Reducing Energy Burden
Before fine grinding, many modern operations employ pre-concentration techniques to discard waste material early.
Dense Media Separation (DMS): Ore is fed into a cyclone containing a suspension of fine ferrosilicon in water, creating a dense medium (e.g., S.G. 2.9-3.0). Particles less dense than this medium (waste rock) float and are removed as tails, while denser particles (the valuable heavy mineral fraction) sink and proceed for further processing.

D.Froth Flotation: Handling Fine Particles
For very fine cassiterite particles ("tin slimes") that are too light for efficient gravity separation (<37 microns), froth flotation becomes necessary. This process relies on surface chemistry.Cassiterite surfaces are rendered hydrophobic (water-repelling) using specific collectors like fatty acids or phosphonic acids.Air bubbles are introduced into the slurry; they attach to these hydrophobic particles and carry them to the surface as a froth, which is skimmed off.The control of pH and use of depressants for other sulphide minerals are critical for selectivity.Flotation concentrate often undergoes further cleaning before being combined with gravity concentrate.

E.Magnetic & Electrostatic Separation: Final Purification
The final tin concentrate often contains other heavy minerals that share similar gravity properties.
High-Intensity Magnetic Separation (HIMS): Used to remove paramagnetic impurities like iron oxides (hematite) and tourmaline.Cassiterite itself is diamagnetic (weakly repelled by a magnet), allowing for this clean separation.
Electrostatic Separation: Utilizes differences in electrical conductivity.Dry particles are charged; conductive minerals lose their charge quickly onto a grounded rotor and are thrown off.Non-conductive cassiterite retains its charge and follows a different trajectory.This method effectively removes residual sulphide minerals.

After this rigorous sequence,the final product can be upgraded from <1% Sn in ROM ore to a marketable concentrate grading between 60-75% Sn.This concentrate,called "tin-in-concentrate,"is then bagged or shipped in bulk containers as feed stock for smelters worldwide where it will be transformed into pure tin metal via pyrometallurgical processes involving roasting,furnace smelting,and refining

3.Market Dynamics & Ubiquitous Applications

The processed tin-in-concentrate enters global trade markets.The price has historically been volatile,influenced by supply disruptions(like export bans from Indonesia),political instability(in key producing regions),and inventory levels on major exchanges like the London Metal Exchange(LME).

Tin’s applications have evolved dramatically from its traditional role:

Solder (~50%of consumption): The single largest application.Modern electronics rely on lead-free solder(made from Tin-Silver-Copper alloys)for assembling everything from smartphonesand computers automotive circuit boards.Its excellent wettability electrical conductivity make irreplaceable
Tinplate (~20%): Steel sheets coated with thin layer provide non-toxic corrosion-resistant coating food beverage cans("tin cans") aerosol containers
Chemicals (~15%): Used catalysts PVC stabilizers wood preservatives
Alloys: Beyond solder used bronze(brass bearings bushings) pewter decorative items
Other Uses: Lithium-ion batteries(some new chemistries use anode materials) float glass production

4 Future Outlook Challenges

The future industry shaped several key trends:

Technological Refinement: Ongoing research focuses improving recovery rates especially difficult-to-process fines reducing energy consumption grinding developing more selective flotation reagents
Circular Economy E-Waste Recycling: Urban mining becoming increasingly important source Secondary recovered electronic waste through sophisticated recycling processes already accounts significant portion supply expected grow
Supply Constraints ESG Factors: Declining ore grades fewer major discoveries mean primary supply may struggle meet demand future Environmental Social Governance(ESG) considerations paramount new projects must demonstrate minimal environmental footprint positive community relations
Emerging Applications: Potential expanded use next-generation batteries perovskite solar cells could create new demand drivers beyond traditional sectors

5 Frequently Asked Questions(FAQ)

Q1:What color typically associated raw cassiterite?
A1:Pure black brown commonly reddish-brown black however color can vary widely depending impurities present

Q2:Why gravity separation preferred method concentration?
A2:Cassiterite possesses significantly higher specific gravity than common gangue minerals making highly amenable efficient low-cost separation based density difference

Q3:What main challenge processing ore?
A3:The inherent brittleness mineral leads generation significant amounts fine slimes during grinding comminution stages These ultrafine particles difficult recover using conventional methods leading potential metal losses

Q4:How pure final metal produced smelter?
A4:Modern electrolytic refining techniques produce LME Grade A with purity exceeding 99 99%

Q5:What typical recovery rate modern plant?
A5:A well-designed operated achieve overall recovery rates ranging depending complexity deposit efficiency circuit Typically figures fall within range

6 Engineering Case Study Renison Tin Mine Tasmania Australia

The Renison mine one world largest underground operations provides excellent example modern practice Its flowsheet complex reflecting refractory nature orebody

Key features include:

• Underground crushing initial hoisting surface
• Primary grinding large ball mill closed-circuit cyclones
• Bulk sulphide flotation remove pyrrhotite pyrite before concentration
• Multi-stage gravity circuit using spirals tables produce initial concentrate
• Fine slimes generated during milling treated dedicated flotation plant using specific collectors
• Final purification steps involve magnetic electrostatic separation remove remaining impurities
• Tailings treated manage potential acid mine drainage before deposition secure facility

This integrated approach combining pre-concentration bulk sulphide removal multi-stage gravity flotation allows Renison achieve viable recoveries challenging material demonstrating sophistication required contemporary industry
