Weight of Crushing Machines: An Overview

The weight of a crushing machine is a critical technical specification that directly influences its operational stability, transportation logistics, installation requirements, and foundation design. It is not a standalone figure but a direct consequence of the machine's structural design, material composition, capacity, and intended application. This article will explore the factors determining crusher weight, compare different types, and examine the practical implications of this key parameter in industrial settings.

Primary Factors Determining Crusher Weight

The mass of a crusher is primarily dictated by:

• Machine Type and Crushing Principle: The mechanical design for compressing and breaking material requires different levels of structural reinforcement.
• Capacity and Feed Size: Machines built to handle larger input or produce higher output require more robust frames, larger components, and heavier wear parts.
• Material of Construction: The use of high-strength steel for frames and housings, manganese steel for wear parts (jaws, cones, liners), and cast iron for certain components adds significant mass.
• Drive System: The inclusion of large electric motors, flywheels, V-belts, and associated guards contributes to the overall weight.

Weight Comparison of Common Crusher Types

The following table provides a generalized weight range for common stationary crusher types in medium-to-large industrial configurations. These figures are based on published manufacturer specifications and industry references. Important Note: Weights can vary dramatically (+/- 30% or more) based on specific model, manufacturer, and optional equipment.

Crusher Type	Typical Application	Crushing Action	Approximate Weight Range (for reference models)	Key Reasons for Weight
Jaw Crusher	Primary crushing of hard, abrasive materials.	Compressive force between a fixed and a moving jaw.	10 - 200+ Metric Tons	Heavy cast steel frame, large flywheels, heavy jaw plates.
Cone Crusher	Secondary/Tertiary crushing for hard to medium-hard materials.	Compression between a gyrating mantle and a concave bowl liner.	15 - 150+ Metric Tons	Robust main frame, heavy bowl assembly, large hydraulic cylinders & adjustment systems.
Impact Crusher (HSI)	Secondary/Tertiary crushing of low-abrasive materials (e.g., limestone).	Impact force from rotating hammers/blow bars onto the material.	20 - 80+ Metric Tons	Solid monoblock rotor assembly, heavy housing to contain impact forces.
Gyratory Crusher	Very high-capacity primary crushing (large mines/quarries).	Compression within a conical crushing chamber.	100 - 800+ Metric Tons	Enormous main frame/shaft assembly to handle extreme forces and throughput.

Practical Implications: A Real-World Case Study

Project: Expansion of a granite quarry's processing plant.
Challenge: Installing a new secondary crushing circuit with a large cone crusher. The selected model had an operational weight of approximately 85 metric tons (excluding feed conveyor & ancillary equipment).
Solution & Weight Considerations:

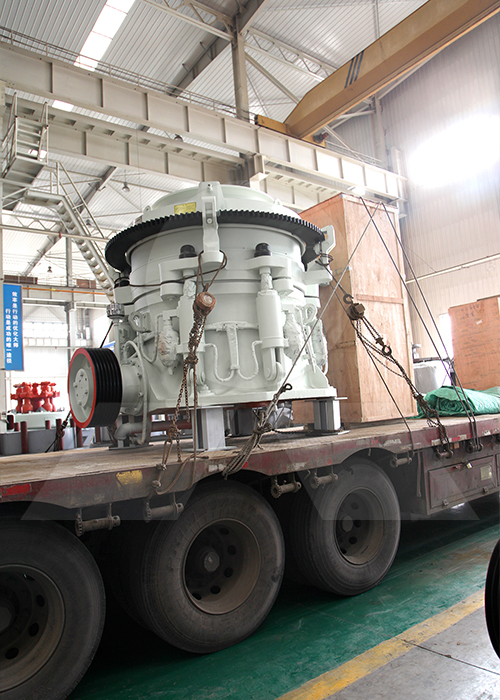

1. Transportation: The crusher was shipped in major sub-assemblies due to road weight restrictions.
2. Foundation Design: Civil engineers designed a reinforced concrete foundation with a mass over three times that of the crusher (approx. 250+ tons) to dampen dynamic loads and ensure stability.
3. Installation: A heavy-lift mobile crane with sufficient capacity was contracted specifically for placing the main frame and bowl assembly.
4. Operational Stability: The significant machine weight contributed directly to reducing vibration and maintaining alignment under load, which is essential for performance and longevity.

This case highlights that the machine's weight is not merely logistical data but a core input for project planning costing hundreds of thousands of dollars in auxiliary work.

---

Frequently Asked Questions (FAQs)

1. Why does the weight of seemingly similar capacity crushers from different manufacturers differ?
Differences arise from design philosophies (e.g., use of thicker plate steel vs advanced ribbing), material choices (different steel grades), component integration levels (e.g., motor mounted on baseframe), and safety factor margins built into the structure.

2. How does machine weight relate to its durability?
Generally—but not absolutely—a heavier frame and structure within the same technology class can indicate greater robustness against fatigue stresses over decades of operation under high cyclic loads. However, intelligent design using finite element analysis (FEA) can also optimize strength-to-weight ratios.

3.What are the main cost impacts related to crusher weight?
Costs increase in several areas: higher raw material costs for manufacturing; specialized heavy transport; larger crane requirements for installation; more extensive site preparation including heavier-duty foundations; potentially stronger supporting structures.

4.Can I install any crusher on an existing concrete slab?
Absolutely not without verification by an engineer.The existing slab must be analyzed for its load-bearing capacity against both static dead load (crusher + support equipment) and dynamic live loads generated during operation.Failure to do so risks catastrophic structural failure.

5.Is there any downside to having an extremely heavy machine?
Yes.Portability is severely limited.For mobile track-mounted plants,there is constant engineering trade-off between durability/performance(weight) versus regulations governing ground pressure(GPSI)and bridge laws during road travel.In stationary plants,the primary downside is higher upfront costs in foundation construction
