Zinc Mining Equipment: An Overview of Extraction and Processing Machinery

The extraction and processing of zinc ore into refined metal is a complex industrial operation that relies on a specialized suite of heavy machinery. From the initial excavation at the mine site to the final concentration of zinc-bearing minerals, each stage employs distinct equipment designed for specific tasks. This article outlines the key equipment used across the primary stages of zinc mining, including drilling, blasting, loading, hauling, and the critical mineral processing phases of crushing, grinding, and flotation. Understanding this equipment is fundamental to appreciating the scale and technical demands of modern zinc production.

Core Equipment in Zinc Mining Operations

The choice of equipment depends heavily on the mining method: open-pit or underground. Open-pit mining, used for near-surface ore bodies, utilizes large-scale earth-moving machines. Underground mining, for deeper deposits, requires more specialized and often compact machinery.

1. Excavation & Haulage

• Drilling Rigs: These create blast holes for fracturing rock. Rotary blast hole drills are standard in open pits, while underground mines use hydraulic jumbos for precision drilling in development and production.
• Blasting Tools: Following drilling, ammonium nitrate fuel oil (ANFO) or emulsions are loaded into holes. Electronic detonators provide precise delay timing for efficient rock breakage.
• Loading Equipment: In open-pits, hydraulic excavators and front-end loaders (e.g., Caterpillar 994 or Komatsu WA1200) load broken ore. Underground, Load-Haul-Dump (LHD) vehicles like those from Sandvik or Epiroc scoop and transport ore to ore passes.
• Haulage Trucks: Massive off-highway trucks (e.g., Caterpillar 777 series or Belaz 75600) are the workhorses of open-pits, moving ore to the primary crusher. Underground transport may involve rail systems, conveyor belts, or trucks in large-bore declines.

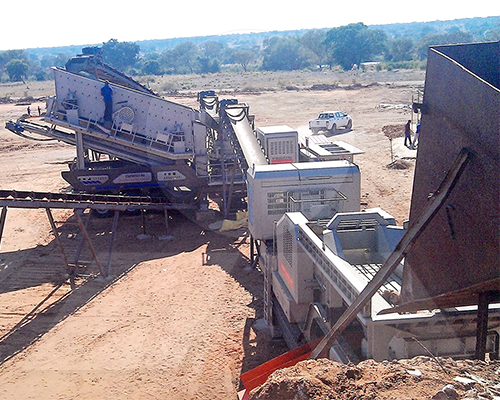

2. Mineral Processing: Crushing & Grinding
Run-of-mine (ROM) ore must be reduced in size to liberate zinc minerals (primarily sphalerite).

• Primary Crushers: Gyratory or jaw crushers handle the initial reduction to ~150-200mm.
• Secondary & Tertiary Crushing: Cone crushers further reduce ore size.
• Grinding Mills: The final size reduction occurs in ball mills or semi-autogenous grinding (SAG) mills, producing a fine slurry where individual mineral grains are liberated.

3. Mineral Separation: Froth Flotation
This is the pivotal process for concentrating sphalerite. The ground slurry is treated in a series of tanks called flotation cells (e.g., Outotec TankCell® or Metso RCS). Reagents are added to make zinc minerals hydrophobic. Air is bubbled through; zinc particles attach to bubbles and form a froth skimmed off as concentrate. Tailings (waste) are pumped to a storage facility.

Equipment Comparison: Open-Pit vs. Underground Mining

Equipment Function	Open-Pit Mining Typical Equipment	Underground Mining Typical Equipment	Key Rationale
Drilling	Large rotary blast hole drills (e.g., Pit Viper)	Hydraulic drilling jumbos with multiple booms	Open-pit requires high-volume hole production; underground demands maneuverability and precision in confined spaces.
Ore Loading	Hydraulic excavators (20+ cubic meter bucket)	Tracked LHDs (Load-Haul-Dump vehicles)	Excavators match scale of open-pit benches; LHDs are versatile for loading and short-hauling in tunnels.
Ore Haulage	Ultra-class haul trucks (220+ ton capacity)	Mine trucks in declines, conveyors, or rail systems	Direct truck haulage is efficient in open layouts; underground relies on integrated systems due to space and ventilation constraints.
Ground Support	Slope stability radars, dewatering pumps	Roof bolters, shotcrete sprayers, ground consolidation rigs	Open-pit manages large-scale slopes; underground requires active reinforcement of tunnels and stopes.

Real-World Case Study: The Rampura Agucha Mine (India)

One of the world's largest zinc mines provides a clear example of integrated equipment application.Rampura Agucha, operated by Hindustan Zinc (a Vedanta subsidiary), transitioned from open-pit to underground block caving around its deeper reserves.

• Open-Pit Phase: Utilized large drills (~250mm diameter), 42 cubic meter excavators, and 240-ton dump trucks to move overburden and ore.
• Underground Transition: The operation now employs:
  • Highly Mechanized Block Caving: Uses automated drill rigs for undercutting.
  • Material Handling: A system of gravity-fed ore passes connects production levels to an underground primary crusher.
  • Crushing & Hoisting: Crushed ore is conveyed to a skip hoist system that brings it directly to the surface processing plant—eliminating thousands of truck-haul kilometers.
  • This integrated equipment strategy maintains high-volume production with improved safety and lower energy intensity post-transition.

Frequently Asked Questions (FAQ)

1. What is the single most expensive piece of equipment in a typical zinc mine?
In a large open-pit operation,the fleet of ultra-class haul trucks represents one of the largest capital expenditures.A single unit like a Caterpillar 797F can cost several million USD.The continuous operation and maintenance costs over their lifespan also contribute significantly to total expense.

2. Why is froth flotation so universally used for zinc processing?
Froth flotation is highly effective because it separates minerals based on their surface chemical properties rather than just density.Sphalerite naturally responds well to specific reagents that make it attach to air bubbles.This allows for efficient separation from gangue minerals like pyrite,silica,and carbonates,yielding high-grade concentrates (~50-60% Zn) essential for economical smelting.

3.How has mining equipment technology evolved to improve safety?
Modern advancements focus on automation and remote operation.LHDs and drills can now be operated from surface control rooms via tele-remote systems,increasingly seen at mines like Newmont's Tanami.This removes personnel from hazardous areas like active draw points in caves or freshly blasted faces.Collision avoidance systems(CAS),proximity detection,and real-time gas/ground movement monitoring are also now standard on major equipment.

4.What happens if sphalerite is finely disseminated within hard rock?
This presents a major processing challenge.It necessitates finer grinding(more energy-intensive)to achieve liberation,but this can also create problematic slimes.Flotation reagent chemistry must be carefully controlled.In such cases,the design of the grinding circuit(e.g.,using stirred media mills)and advanced flotation cell technology become critical to achieving acceptable recovery rates without excessive cost.

---

Sources & Further Reading Basis:
Industry-standard references informing this overview include:Caterpillar Performance Handbook,the SME Mineral Processing Handbook,technical publications from Mining Magazine,and publicly available technical reports from major miners like Vedanta(HLAG),Glencore,and Boliden regarding their operations.The case study details are drawn from Hindustan Zinc's published technical disclosures on Rampura Agucha's transition plan
